Name: High Speed Slip Ring 18000 RPM Gold Contacts 12-28 Channels
Brand: Shenzhen SPRing Technology Co.,Ltd
SKU: SP045028-G18
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Working Loops: 12-20-28 Channels Are Optional

Insulation Resistance: ≥110MΩ/250V/DC

Contact Material: Gold-gold

Rated Voltage/current: 80VDC/1A

Electrical Strength: ≥250VAC/50Hz/60s

Rated Speed: 2000-18000 Rpm

Working Life: 100 Million Revolutions

Highlight:

High Speed Slip Ring 18000 RPM

Gold Contacts Slip Ring 12-28 Channels

High RPM Slip Ring with Gold Contacts

Basic Infomation

Place of Origin: Shenzhen

Brand Name: SPR-ing

Model Number: SP045028-G18

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 1~3 weeks

Payment Terms: L/C,T/T

Supply Ability: 1000/month

Gallery

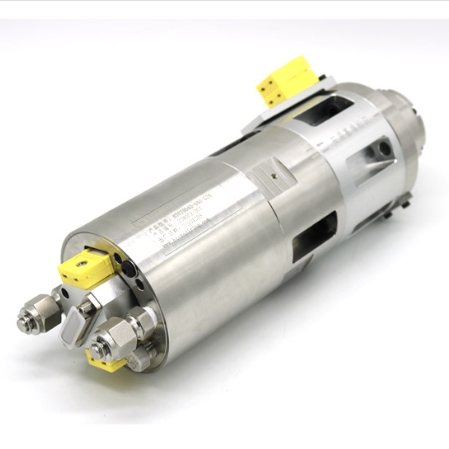

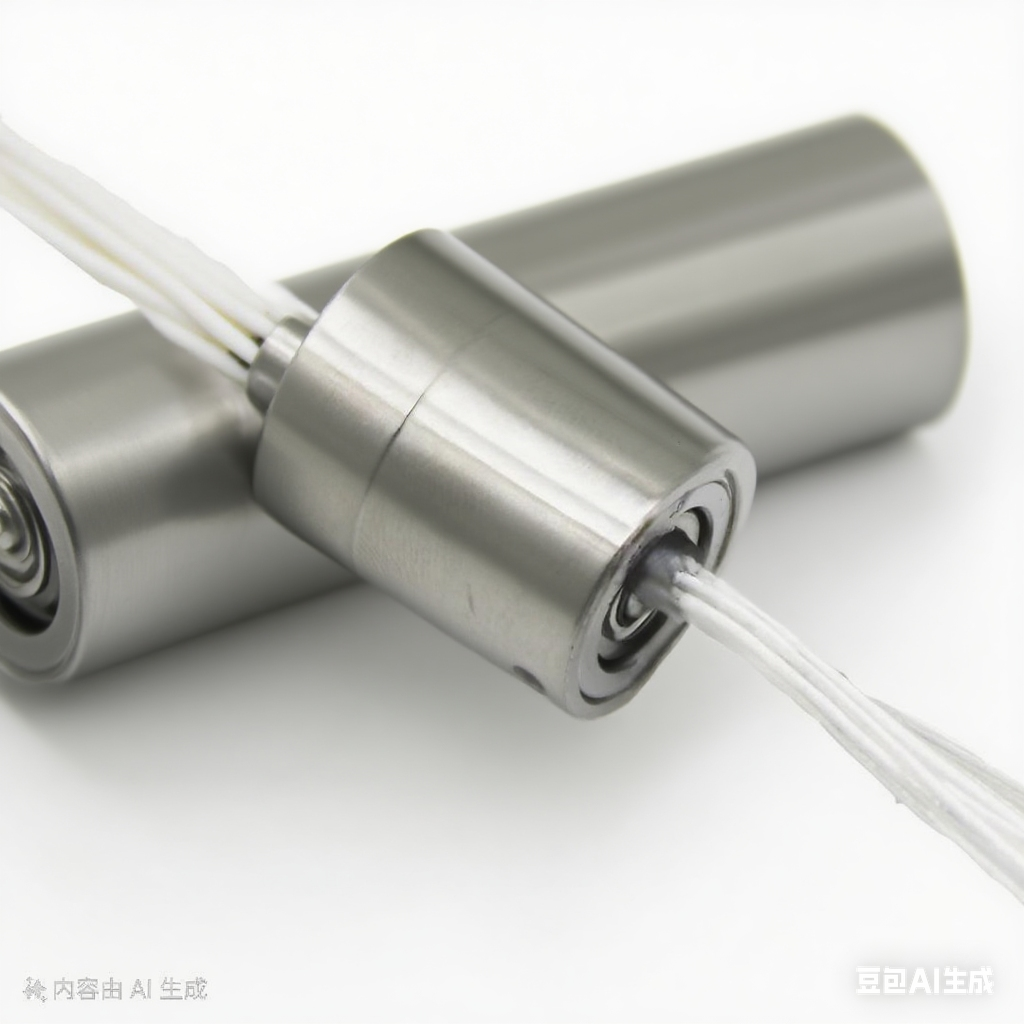

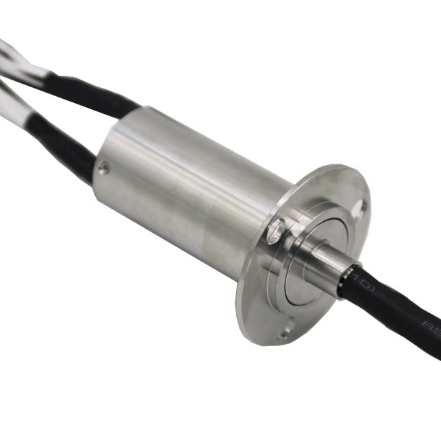

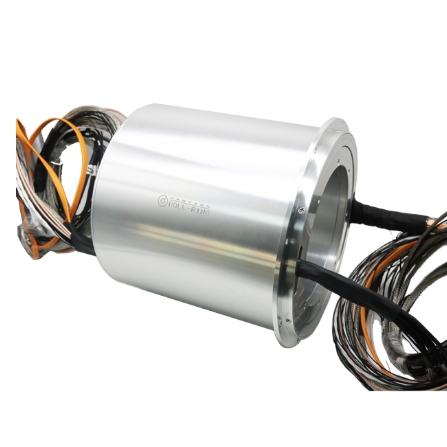

High Speed Slip Ring 18000 RPM Gold Contacts 12-28 Channels

Product Description

High Amp Slip Ring Connector - 18,000 RPM, Gold Contacts

Product Overview

Our high-speed slip ring represents cutting-edge technology in electrical connectivity solutions. This advanced slip ring features gold-gold contacts and operates without requiring cooling devices, with wire outputs at both ends. Capable of reaching speeds up to 18,000 RPM, it can be customized to meet various speed requirements.

Technical Specifications

Attribute	Value
Working loops	12-20-28 channels (optional)
Insulation resistance	≥110MΩ/250V/DC
Contact Material	Gold-gold
Rated voltage/current	80VDC/1A
Electrical strength	≥250VAC/50Hz/60s
Rated speed	2000-18000 rpm
Working life	100 million revolutions

Detailed Technical Parameters

Electrical Specifications

Dynamic resistance change value	≤10mΩ
Wire length	Standard 600mm (customizable)

Mechanical Specifications

Operating temperature	-20℃～80℃
Operating humidity	25～95%RH
Housing material	304 stainless steel
Maximum starting torque	<2N.cm
Ingress protection	IP65

Technical Advantages

Core Friction Pair Technology: Gold-gold contacts ensure stable signal transmission for low-voltage applications
Integrated Pouring Process: Maintains ≤0.01mm concentricity for enhanced precision
Mirror Processing Technology: Achieves Ra0.02 surface finish for reliable electrical contact
Precision Manufacturing: Components with <0.01mm tolerance for consistent performance
Advanced Brush Design: Near-zero pressure extends lifespan by 33%
Compact Structure: Adaptable to space-constrained applications
Robust Construction: 304 stainless steel housing withstands harsh environments
High-Speed Operation: No cooling system required at up to 18,000 RPM
Continuous Operation: 90-hour runtime at maximum speed

Support and Services

Our technical support team provides comprehensive assistance with installation, operation, and troubleshooting. We offer maintenance, repair, and customization services to ensure optimal performance.

Packaging and Shipping

Each slip ring is securely packaged in compact boxes. Orders ship within 1-2 business days with multiple shipping options available.

Frequently Asked Questions

Q: What is the brand of the Mini Slip Ring product?

A: SPR-ing

Q: What is the model number?

A: SP025

Q: Where is it manufactured?

A: Jiujiang

Q: What is the minimum order quantity?

A: 1 unit

Q: What payment methods are accepted?
