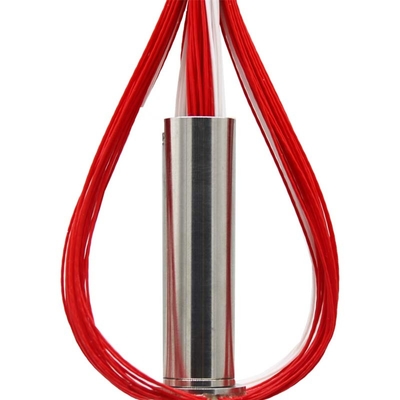

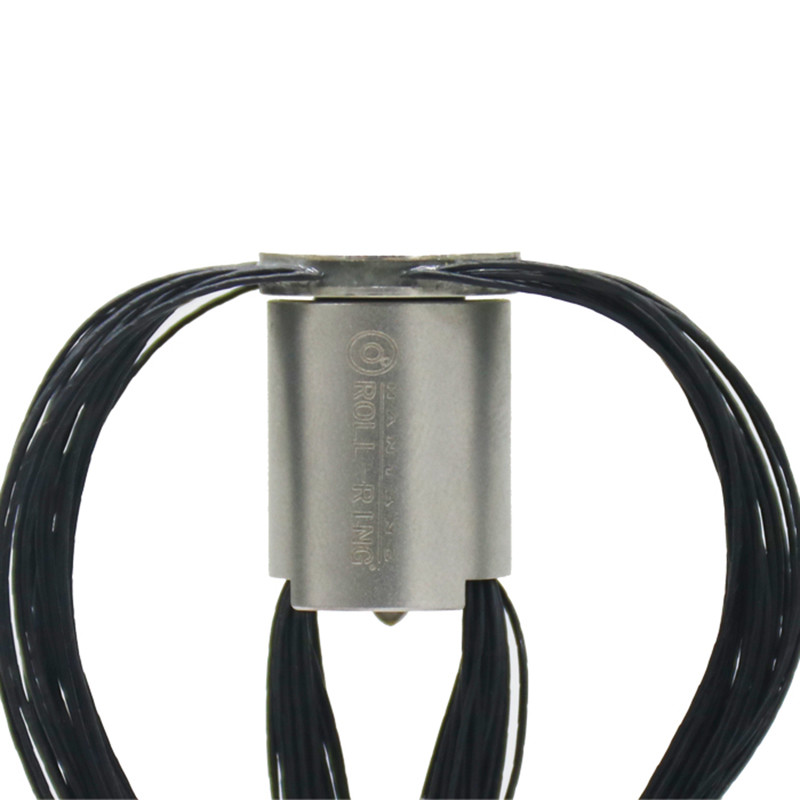

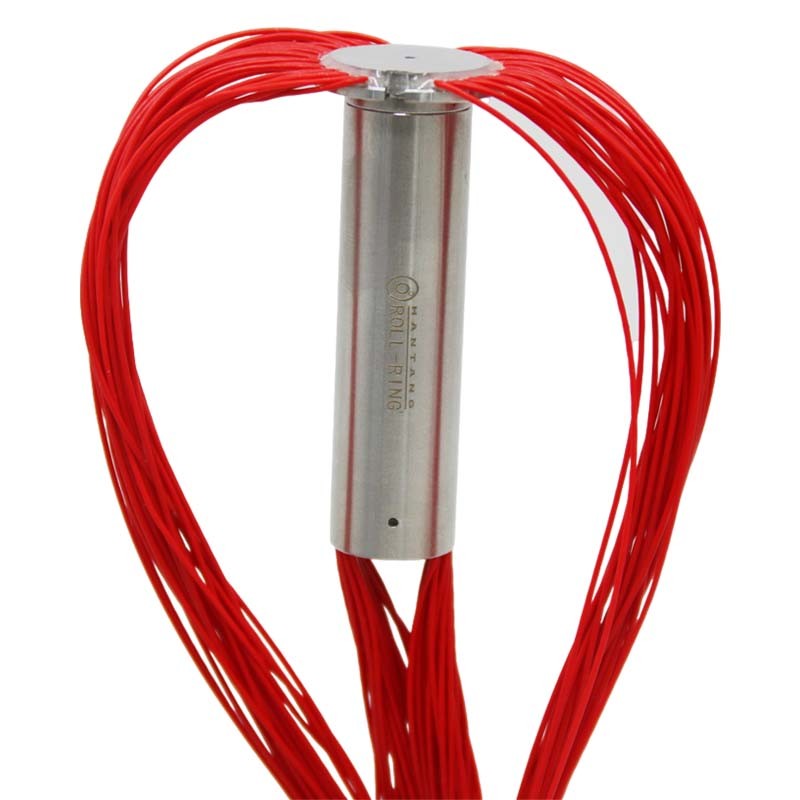

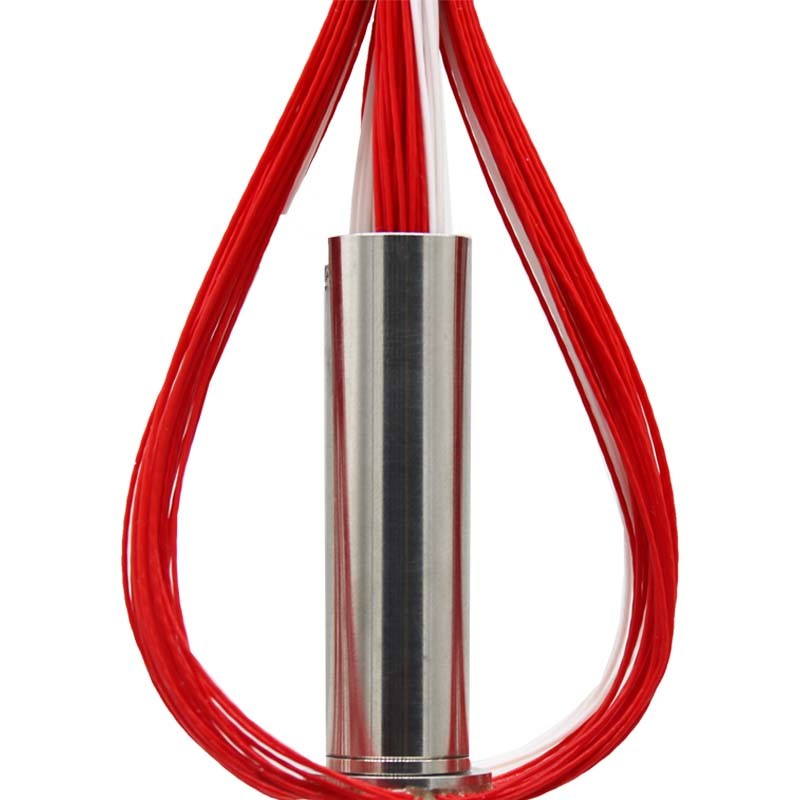

High Speed Slip Ring Long Working Life Slip Ring 36 Loop

High Speed Slip Ring Long Working Life Slip Ring 36 Loop

The SP025 precision conductive slip ring series products are tailored for slip rings with small space requirements in rotary systems,

meeting the full performance conditions of rotation, storage, and operation. The special manufacturing process ensures superior slip ring performance during long-term storage of system.

Technical parameters

Technical advantages

ü  Gold-gold contact, high conductivity, good thermal conductivity, small temperature coefficient of resistance (resistance to vulcanization, oxidation, corrosive gases, etc.), a certain hardness, good wear resistance (good fusion welding resistance, resistance to arc corrosion and burns).

ü  Integrated pouring process: ensure that the concentricity of the ring groove and the bearing is ≤ 0.01 mm.

ü  Mirror processing technology: ensure that the contact surface finish of the slip ring can reach Ra0.02, and the contact is more reliable.

ü  Precision component manufacturing process: dimensional tolerances＜0.01mm, High precision, more stable contact.

ü  The service life of the slip ring is prolonged by 1/3 due to the brush design and debugging process close to zero pressure.

ü  Small size, compact structure, can meet the user's space constraints.

ü  The slip ring is made of integral stainless steel metal structure, which is suitable for extremely harsh environment.

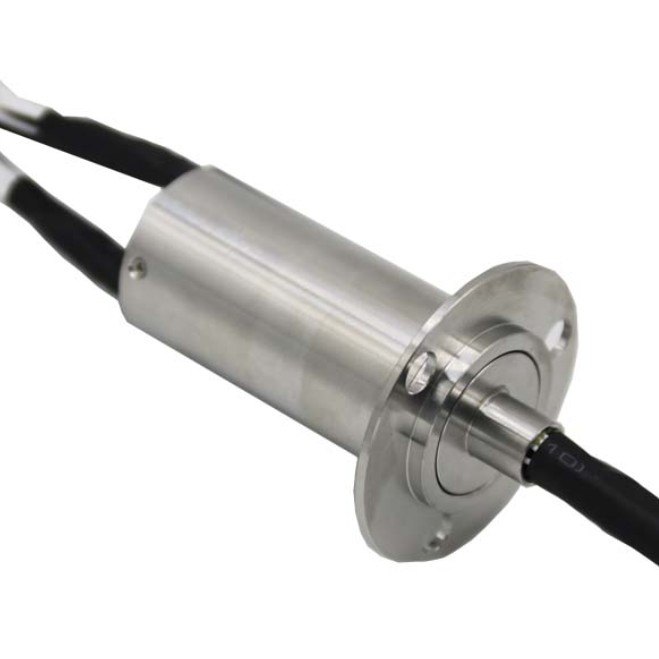

Boundary dimension with flange

Size

Factory View
