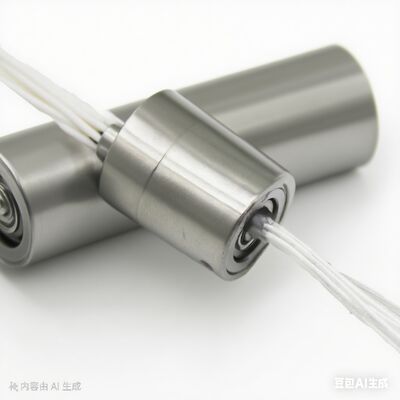

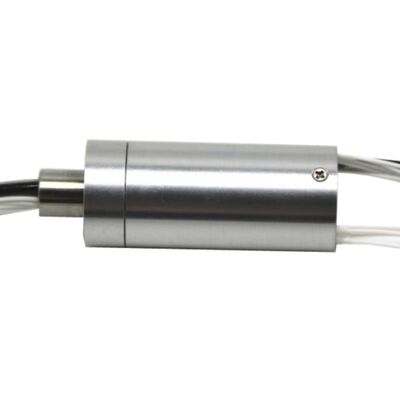

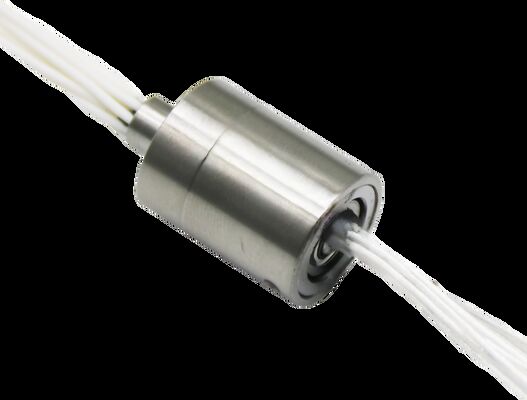

Conductive Slip Ring with 303 Stainless Steel Wire Leads Mounting for PTZ Camera System

Compact, high-performance slip ring featuring an integral stainless steel structure. The gold-gold contact provides reliable signal and power transfer with excellent thermal conductivity. Precision manufacturing and mirror-polished contacts improve stability and lifespan, while brush design ensures minimal pressure and longer durability. Rated for 0-240VDC, max 2A, speeds up to 250 rpm, and working temperature -40°C to 85°C. Ideal for space-limited industrial applications.

36-ring: 36-way 2A, 4-way 5A + 28-way 2A, 4-way 10A + 20-way 2A
56-ring: 56-way 2A, 4-way 5A + 48-way 2A

• Gold-gold contact provides high conductivity, excellent thermal conductivity, and small temperature coefficient of resistance
• Resistant to vulcanization, oxidation, corrosive gases with good hardness and wear resistance
• Integrated pouring process ensures ring groove and bearing concentricity ≤ 0.01 mm
• Mirror processing technology achieves contact surface finish of Ra0.02 for reliable contact
• Precision component manufacturing with dimensional tolerances <0.01mm for stable contact
• Brush design and debugging process near zero pressure extends service life by 1/3
• Compact size and structure ideal for space-constrained applications
• Integral stainless steel metal structure suitable for extremely harsh environments

• Expert troubleshooting assistance
• Installation guidance and support
• Maintenance recommendations
• Warranty services for eligible products

Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.

Brand Name: SPR-ing
Model Number: SP025
Manufacturing Location: Shenzhen, China
Minimum Order Quantity: 1 piece
Accepted Payment Methods: L/C and T/T
