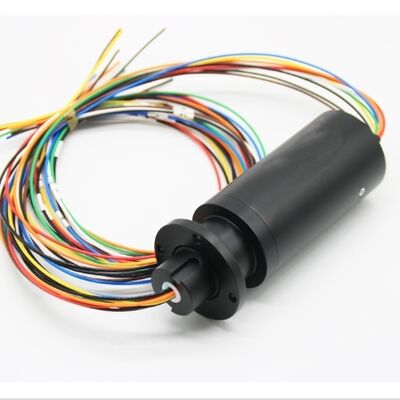

High-Speed Capsule Slip Ring 8 Circuits with 0-10000 rpm For Robotic Arm & Automated Test Equipment

The SP030008 Mini Electric Slip Ring is a high-performance, high-speed slip ring engineered for precision industrial and laboratory testing platforms. Supporting 8 circuits with 1A per channel and 240VDC rated voltage, this compact slip ring delivers stable power and signal transmission for sensitive measurements including strain gauges and thermocouples. With a maximum speed of 10,000 RPM and operational life of up to 100 million revolutions, it ensures reliable performance in demanding applications.

• High-speed testing platforms for aircraft engines
• Automotive wheel hub performance and drivetrain testing
• High-speed rail component testing
• Strain gauge and thermocouple signal acquisition
• Robotics and UAV payloads
• Laboratory and industrial precision measurement systems

• High-Speed Capability: Operates up to 10,000 RPM for demanding testing environments
• Ultra-Long Life: Gold-gold contact with advanced friction pair technology ensures 100 million cycles
• Precision Manufacturing: Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
• Compact and Lightweight: Small size meets tight installation requirements
• Stable Signal Transmission: Low dynamic resistance ≤10mΩ ensures accurate measurements
• Customizable: Wire length, circuit count, and other parameters can be tailored to specific requirements
