Home /Products/Mini Slip Ring/Industrial Slip Ring Manufacturer with 8 Circuits 1A per Channel 0–250V Rated Voltage Long Life Design for Automation Equipment

Industrial Slip Ring Manufacturer with 8 Circuits 1A per Channel 0–250V Rated Voltage Long Life Design for Automation Equipment

1
MOQ
200-800USD
Price
Industrial Slip Ring Manufacturer with 8 Circuits 1A per Channel 0–250V Rated Voltage Long Life Design for Automation Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Loop: 8 Circuits
Rated Current: 1A
Rated Voltage: 240VDC
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change Value: ≤10mΩ
Rated Speed: 0-10000 Rpm
Highlight:

8-circuit industrial slip ring

,

1A per channel slip ring

,

long life mini slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP030008
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

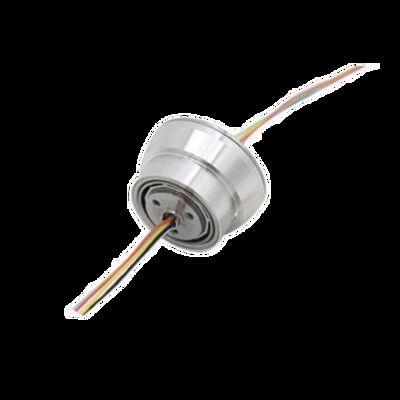

SP030008 Mini Electric Slip Ring

A high-performance, high-speed slip ring designed for precision industrial and laboratory testing platforms. This miniature slip ring ensures stable power and signal transmission for sensitive measurements with its compact aluminum alloy shell and gold-gold contact technology.

Technical Specifications
Electrical Specifications
Design Loop 8
Insulation Resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Rated Speed 0-10,000 RPM
Working Life 100 million revolutions
Operating Temperature -40℃ to 80℃
Operating Humidity 0-80% RH
Contact Material Gold-gold
Shell Material Aluminum alloy

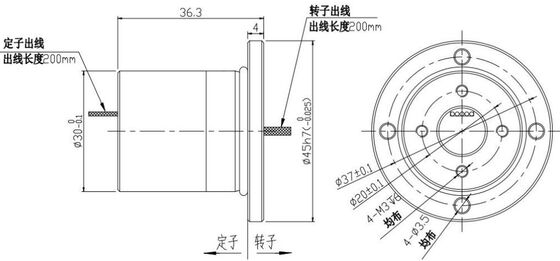

Outline Drawing
Industrial Slip Ring Manufacturer with 8 Circuits 1A per Channel 0–250V Rated Voltage Long Life Design for Automation Equipment 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
High-Speed Capability

Operates up to 10,000 RPM for demanding testing environments

Ultra-Long Life

Gold-gold contact with advanced friction pair technology ensures 100 million cycles

Precision Manufacturing

Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm

Compact and Lightweight

Small size meets tight installation requirements

Stable Signal Transmission

Low dynamic resistance ≤10mΩ ensures accurate measurements

Customizable

Wire length, circuit count, and other parameters can be tailored to specific requirements

Tag:

miniature slip ring

small slip ring

micro slip ring
