Factory Direct Industrial Slip Ring Manufacturer IP68 Multi Channel Power and Signal

1
MOQ
200-800USD
Price
Factory Direct Industrial Slip Ring Manufacturer IP68 Multi Channel Power and Signal
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 8
Insulation Resistance: 220MΩ/250V/DC
Current: 240VDC/1A
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change Value: ≤10mΩ
Rated Speed: 0-10000 Rpm
Highlight:

industrial slip ring IP68

,

multi channel slip ring

,

factory direct slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP030008
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Factory Direct Industrial Slip Ring Manufacturer IP68 Multi Channel Power and Signal
The SP030008 Mini Electric Slip Ring is a compact, high-speed slip ring designed for precision industrial and laboratory applications. Featuring 8 circuits, 1A per channel, and rated 240VDC, it supports speeds up to 10,000 RPM and a lifespan of 100 million revolutions. Its aluminum alloy shell and gold-gold contacts ensure durable, stable, and low-resistance signal transmission.
Technical Specifications
Electrical Specifications
Design Loop 8
Insulation Resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Rated Speed 0-10,000 RPM
Working Life 100 million cycles
Operating Temperature -40℃ to 80℃
Operating Humidity 0-80% RH
Contact Material Gold-gold
Shell Material Aluminum alloy

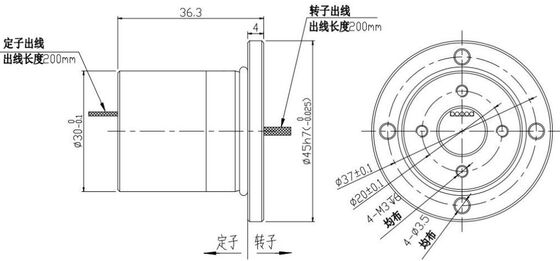

Outline Drawing
Factory Direct Industrial Slip Ring Manufacturer IP68 Multi Channel Power and Signal 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
  • High-Speed Capability: Operates up to 10,000 RPM for demanding testing environments
  • Ultra-Long Life: Gold-gold contact with advanced friction pair technology ensures 100 million cycles
  • Precision Manufacturing: Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
  • Compact and Lightweight: Small size meets tight installation requirements
  • Stable Signal Transmission: Low dynamic resistance ≤10mΩ ensures accurate measurements
  • Customizable: Wire length, circuit count, and other parameters can be tailored to specific requirements
