High Performance Slip Ring Manufacturer Multi Channel 1A per Channel Continuous Rotation

1
MOQ
200-800USD
Price
High Performance Slip Ring Manufacturer Multi Channel 1A per Channel Continuous Rotation
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 8
Insulation Resistance: 220MΩ/250V/DC
Current: 240VDC/1A
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change Value: ≤10mΩ
Rated Speed: 0-10000 Rpm
Highlight:

multi channel slip ring 1A

,

continuous rotation slip ring

,

mini slip ring high performance
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP030008
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
High Performance Slip Ring - Multi Channel 1A per Channel Continuous Rotation

The SP030008 series mini slip ring provides high-speed and reliable signal transmission for industrial and laboratory testing platforms. With 8 circuits, 1A per channel, and rated voltage of 240VDC, it can operate up to 10,000 RPM. Gold-gold contacts and an aluminum alloy shell ensure durability, low resistance, and stable performance for high-speed strain gauge and thermocouple measurements.

Technical Specifications
Electrical Specifications
Design Loop 8
Insulation Resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Rated Speed 0-10,000 RPM
Working Life 100 million cycles
Operating Temperature -40℃ to 80℃
Operating Humidity 0-80% RH
Contact Material Gold-gold
Shell Material Aluminum alloy

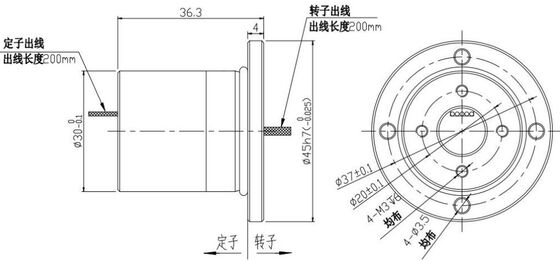

Outline Drawing
High Performance Slip Ring Manufacturer Multi Channel 1A per Channel Continuous Rotation 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
High-Speed Capability: Operates up to 10,000 RPM for demanding testing environments
Ultra-Long Life: Gold-gold contact with advanced friction pair technology ensures 100 million cycles
Precision Manufacturing: Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
Compact and Lightweight: Small size meets tight installation requirements
Stable Signal Transmission: Low dynamic resistance ≤10mΩ ensures accurate measurements
Customizable: Wire length, circuit count, and other parameters can be tailored to specific requirements
