SP030008 Mini Electric Slip Ring 8 Circuits 1A 240VDC High-Speed 10000 RPM Manufacturer

1
MOQ
200-800USD
Price
SP030008 Mini Electric Slip Ring 8 Circuits 1A 240VDC High-Speed 10000 RPM Manufacturer
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 8
Insulation Resistance: 220MΩ/250V/DC
Current: 240VDC/1A
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change Value: ≤10mΩ
Rated Speed: 0-10000 Rpm
Humidity Range: 0–80% RH
Contact Type: Gold-Gold
Highlight:

Mini electric slip ring 8 circuits

,

High-speed slip ring 10000 RPM

,

Mini slip ring with warranty
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP030008
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

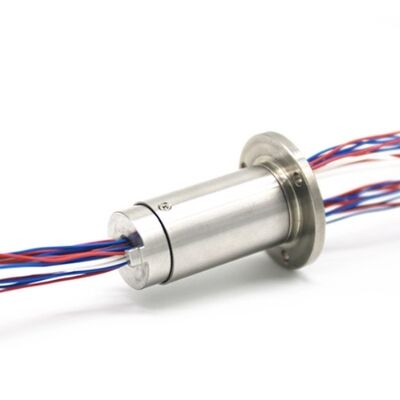

SP030008 Mini Electric Slip Ring 8 Circuits 1A 240VDC High-Speed 10000 RPM
The SP030008 miniature slip ring is engineered for compact installations requiring high rotational speed and stable electrical performance. Supporting up to 10,000 RPM, this 8-circuit slip ring uses gold-gold contact technology to achieve low electrical noise and minimal resistance variation, making it suitable for sensitive signal transmission in industrial and laboratory environments.
Technical Specifications
Electrical Specifications
Design Loop 8
Insulation Resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Rated Speed 0-10000 rpm
Working Life 100 million cycles
Operating Temperature -40℃ ~ 80℃
Operating Humidity 0～80%RH
Contact Material Gold-gold
Shell Material Aluminum alloy
Outline Drawing
SP030008 Mini Electric Slip Ring 8 Circuits 1A 240VDC High-Speed 10000 RPM Manufacturer 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
  • High-Speed Capability: Operates up to 10,000 RPM for demanding testing environments
  • Ultra-Long Life: Gold-gold contact with advanced friction pair technology ensures 100 million cycles
  • Precision Manufacturing: Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
  • Compact and Lightweight: Small size meets tight installation requirements
  • Stable Signal Transmission: Low dynamic resistance ≤10mΩ ensures accurate measurements
  • Customizable: Wire length, circuit count, and other parameters can be tailored to specific requirements
