High-Speed Mini Electric Slip Ring 10000 RPM 8 Channels for Automotive Testing Factory

1
MOQ
200-800USD
Price
High-Speed Mini Electric Slip Ring 10000 RPM 8 Channels for Automotive Testing Factory
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 8
Insulation Resistance: 220MΩ/250V/DC
Current: 240VDC/1A
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change Value: ≤10mΩ
Rated Speed: 0-10000 Rpm
Highlight:

high-speed mini slip ring

,

8-channel electric slip ring

,

10000 RPM slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP030008
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

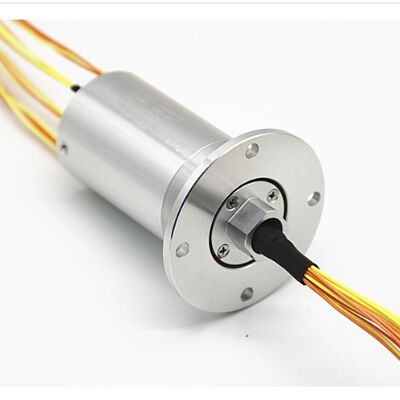

High-Speed Mini Electric Slip Ring 10000 RPM 8 Channels for Automotive Testing Factory
This miniature high-speed slip ring combines compact size with outstanding electrical performance. SP030008 supports stable transmission at high speeds while maintaining long service life, making it ideal for space-limited and precision-demanding applications.
Technical Specifications
Electrical Specifications
Design loop 8
Insulation resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric strength ≥300VAC/50Hz/60s
Dynamic resistance change value ≤10mΩ
Wire length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Rated speed 0-10000 rpm
Working life 100 million circle
Operating temperature -40℃ ~ 80℃
Operating humidity 0～80%RH
Contact material Gold-gold
Shell material Aluminum alloy

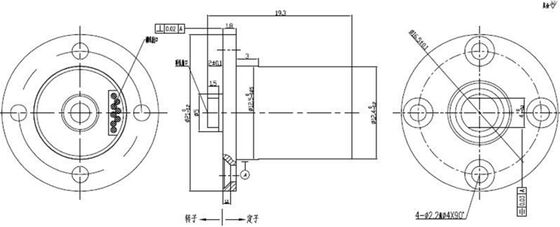

Outline Drawing
High-Speed Mini Electric Slip Ring 10000 RPM 8 Channels for Automotive Testing Factory 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
High-Speed Capability
Operates up to 10,000 RPM for demanding testing environments
Ultra-Long Life
Gold-gold contact with advanced friction pair technology ensures 100 million cycles
Precision Manufacturing
Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
Compact and Lightweight
Small size meets tight installation requirements
Stable Signal Transmission
Low dynamic resistance ≤10mΩ ensures accurate measurements
Customizable
Wire length, circuit count, and other parameters can be tailored to specific requirements
