Miniature Capsule Slip Ring with Gold-Gold Contact for Signal & Power Transmission

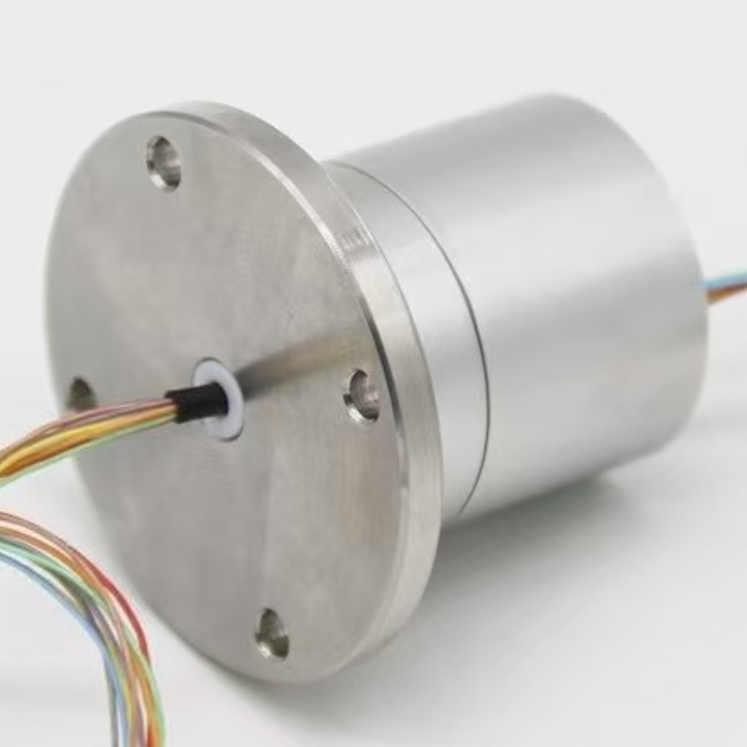

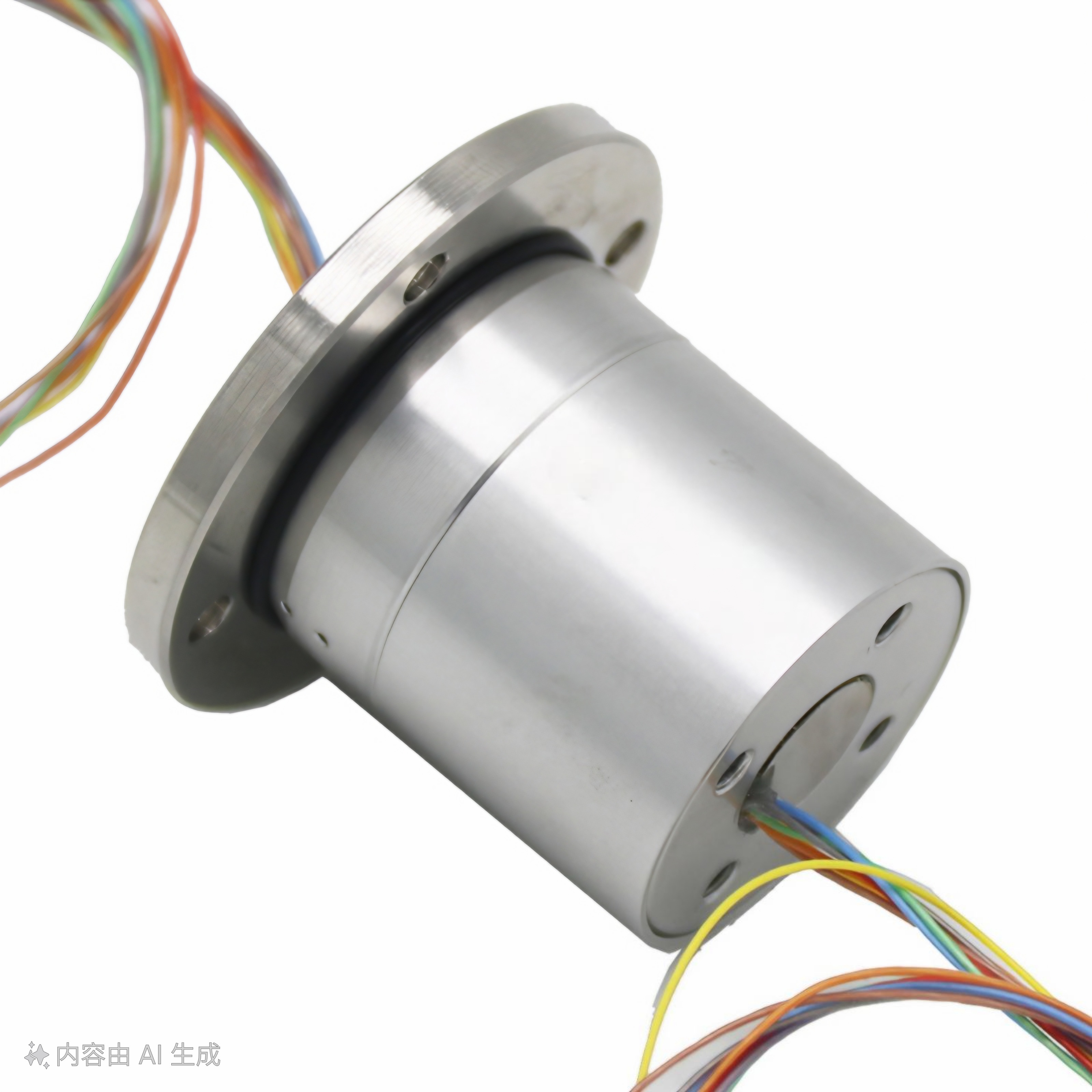

The SP035018-A miniature capsule slip ring delivers reliable multi-channel transmission for high-speed rotating applications. With 18 circuits and a rated speed of 5000 RPM, it supports continuous operation with stable performance. The stainless steel shell and gold-gold contact technology ensure durability and low maintenance requirements. An optional speed measuring device is available. This slip ring is widely used in automation, rotary machinery, and industrial testing setups.

• Gold-gold contact technology: Advanced friction pair technology ensures ultra-long service life
• Integrated casting process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror processing technology: Achieves contact surface smoothness of Ra0.02 for reliable performance
• Precision component manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
• Advanced brush wire modulation: Near-zero pressure brush design extends slip ring life by 1/3
• Compact design: Small size and compact structure to meet space constraints
• Stainless steel construction: Durable and well-sealed for harsh environments
• Color-coded interface: Easy installation and connection
