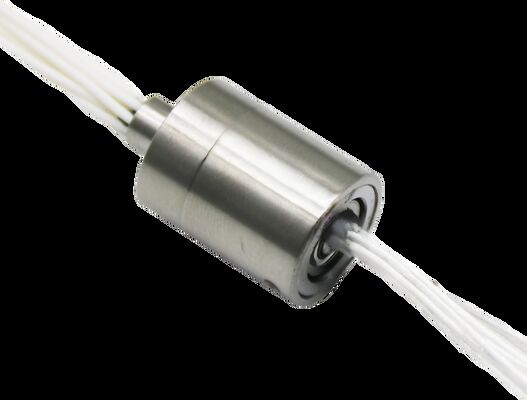

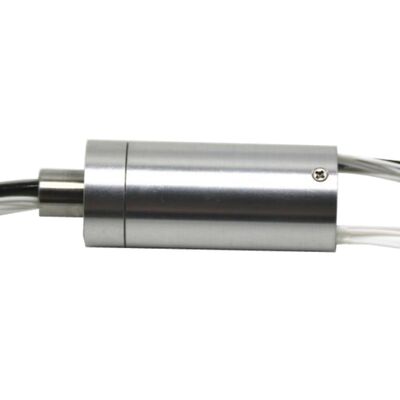

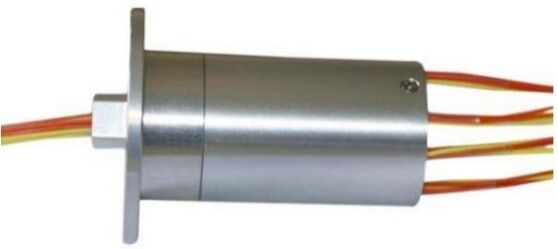

Miniature Capsule Slip Ring 20 Circuits 3A Signal & Power Transmission Rotary Joint for CCTV PTZ Camera

1
MOQ
200-800USD
Price
Miniature Capsule Slip Ring 20 Circuits 3A Signal & Power Transmission Rotary Joint for CCTV PTZ Camera
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0~3000 RPM
Design Loop: 20
Working Life: 10 Million~100 Million Circle
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -40℃ To 60℃
Insulation Resistance: 200MΩ/250V/DC
Maximum Current: 1A
Shell Material: Alluminum Alloy/304 Stainless Steel/316L Stainless Steel
Highlight:

Miniature slip ring 20 circuits

,

Capsule slip ring for CCTV PTZ

,

Rotary joint 3A power transmission
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP036020
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Miniature Capsule Slip Ring - 20 Circuits 3A Signal & Power Transmission
The SP036020 long life slip ring is engineered with high-precision component processing technology, achieving dimensional tolerance and axial displacement below 0.01 mm. This exceptional mechanical accuracy ensures excellent concentricity between the ring groove and bearing (≤ 0.01 mm), resulting in smoother rotation, lower vibration, and more reliable electrical performance at high speeds.
Technical Specifications
Electrical Specifications
Design Loop 20
Insulation Resistance 200MΩ/250V/DC
Rated Voltage/Current 250VDC/3A
Dielectric Strength ≥250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 300 ± 20mm (optional)
Mechanical Specifications
Rated Speed 0~3000 rpm
Working Life 10 million~100 million rotations
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Aluminum alloy/304 stainless steel/316L stainless steel
Maximum Starting Torque 3.5N.cm
IP Grade IP51
Outline Drawing
Miniature Capsule Slip Ring 20 Circuits 3A Signal & Power Transmission Rotary Joint for CCTV PTZ Camera 0
Technical Advantages
  • Advanced Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for more reliable performance
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High-Speed Capability: Maximum speed of 8000 revolutions per minute (with cooling system)
  • Extended Lifespan: Maximum operational life of up to 100 million rotations
