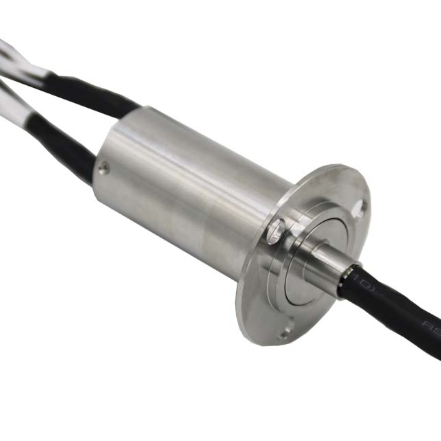

CT Scanner Slip Ring 18 Circuits High‑Reliability Transmission System

The SP013018 Series high-speed slip ring is engineered for precision signal transmission at speeds up to 10,000 rpm. Supporting up to 18 circuits, it operates at 80VDC/1A with insulation resistance of 250MΩ@250VDC and dielectric strength above 300VAC. Featuring gold-to-gold contacts and ≤20mΩ dynamic resistance variation, it ensures stable strain gauge and thermocouple signal transmission in demanding testing applications.

• Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
• Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for reliable contact
• Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
• Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
• High-Speed Capability: Maximum speed of 8,000 rpm (with cooling system)
• Extended Lifespan: Maximum operational life of up to 100 million revolutions
