Custom Slip Ring Manufacturer Direct Supply High Quality Rotary Joint

1
MOQ
200-800USD
Price
Custom Slip Ring Manufacturer Direct Supply High Quality Rotary Joint
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-10000 Rpm
Design Loop: 18
Working Life: 10 Million Circle
Dynamic Resistance Change: ≤20mΩ
Working Temperature: -50℃ ~ 80℃
Insulation Resistance: 200MΩ/250V/DC
Maximum Current: 1A
Shell Material: 304 Stainless Steel
Highlight:

custom slip ring manufacturer direct

,

high quality rotary joint

,

mini slip ring with warranty
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP013018
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Custom Slip Ring Manufacturer Direct Supply High Quality Rotary Joint

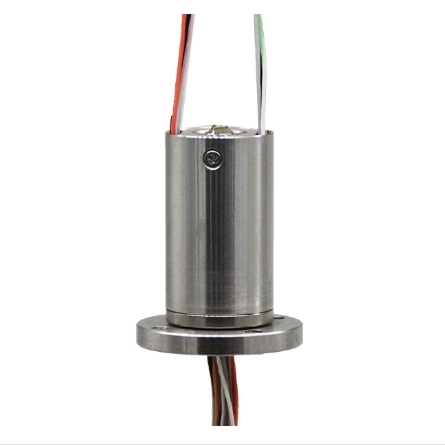

SP013018 Long Life High Speed Slip Ring

The SP013018 series high-speed slip ring is engineered for reliable electrical transmission in high-speed rotating systems. Featuring compact size and precision construction, this slip ring delivers stable signal transmission for strain gauges, thermocouples, and other sensitive sensors.

Thanks to its gold-to-gold contact structure and advanced brush modulation technology, the SP013018 slip ring ensures low electrical noise and extended service life.

Application Areas

Used for high-speed testing platform strain gauge signals, thermocouple signals, and other sensitive sensor applications, including:

  • Aircraft engine testing
  • High-speed rail component testing
  • Automotive wheel hub performance testing
Technical Parameters
Electrical Specifications
Parameter Specification
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10000 rpm
Working Life 10 million rpm
Operating Temperature -50℃ ~ 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 stainless steel
Maximum Starting Torque 0.5N.cm
Outline Drawing

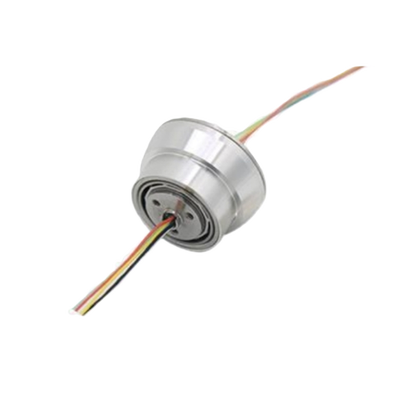

Custom Slip Ring Manufacturer Direct Supply High Quality Rotary Joint 0
Technical Advantages
  • Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 revolutions per minute (with cooling system)
  • Extended Lifespan: Maximum lifespan of up to 100 million revolutions per minute
