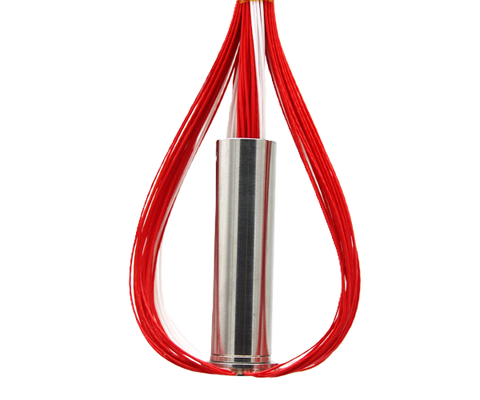

High Speed 10000RPM 18 Circuits 1A Compact Size Electrical Slip Ring

1
MOQ
200-800USD
Price
High Speed 10000RPM 18 Circuits 1A Compact Size Electrical Slip Ring
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-10000 Rpm
Design Loop: 18
Working Life: 10 Million Circle
Dynamic Resistance Change: ≤20mΩ
Working Temperature: -50℃ ~ 80℃
Insulation Resistance: 200MΩ/250V/DC
Maximum Current: 1A
Shell Material: 304 Stainless Steel
Highlight:

compact electrical slip ring 10000RPM

,

mini slip ring 18 circuits

,

high speed slip ring 1A
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP013018
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

High Speed 10000RPM 18 Circuits 1A Compact Size Electrical Slip Ring

The SP013018 series is a high-performance slip ring specifically engineered for precision testing and industrial rotating systems. With a rated speed of 10,000 RPM and compact design, it delivers stable electrical signal transmission even under high-speed rotation conditions.

Product Overview

Manufactured using integrated casting technology, this slip ring ensures exceptional concentricity between the ring groove and bearing, resulting in superior durability and operational stability.

Application Areas

Ideal for high-speed testing platforms including strain gauge signals, thermocouple signals, and applications in aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.

Technical Specifications

Electrical Specifications

Design Loop ≤18 Circuits
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC / 1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (Customizable)

Mechanical Specifications

Rated Speed 0-10,000 RPM
Working Life 10 Million RPM
Operating Temperature -50℃ to 80℃
Operating Humidity ≤80%
Contact Material Gold-Gold
Shell Material 304 Stainless Steel
Maximum Starting Torque 0.5N.cm

Outline Drawing

High Speed 10000RPM 18 Circuits 1A Compact Size Electrical Slip Ring 0

Technical Advantages

  • Advanced Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Guarantees concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for reliable performance
  • Precision Component Manufacturing: Dimensional tolerance < 0.01mm, axial displacement < 0.01mm
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High-Speed Capability: Maximum speed of 8,000 RPM (with cooling system)
  • Extended Lifespan: Maximum operational life up to 100 million revolutions
