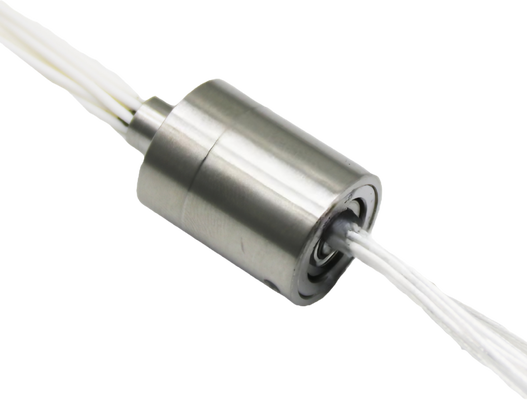

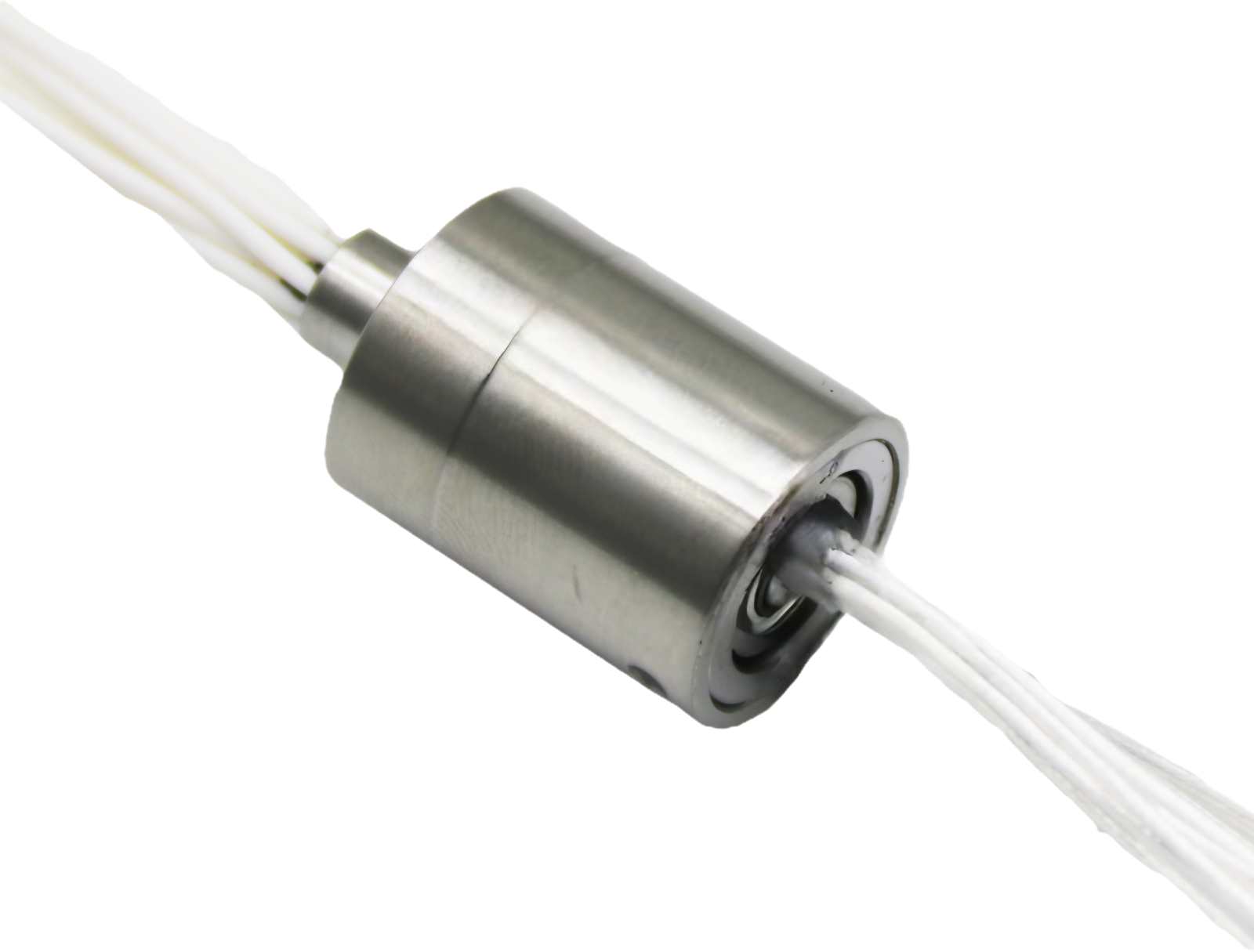

SP013018 High Speed Slip Ring10000 RPM Miniature Slip Ring for Signal Transmission

1
MOQ
200-800USD
Price
SP013018 High Speed Slip Ring10000 RPM Miniature Slip Ring for Signal Transmission
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-10000 Rpm
Design Loop: 18
Working Life: 10 Million Circle
Dynamic Resistance Change: ≤20mΩ
Working Temperature: -50℃ ~ 80℃
Insulation Resistance: 200MΩ/250V/DC
Maximum Current: 1A
Shell Material: 304 Stainless Steel
Highlight:

high speed slip ring 10000 RPM

,

miniature slip ring signal transmission

,

mini slip ring high performance
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP013018
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
SP013018 High Speed Slip Ring - 10000 RPM Miniature Slip Ring for Signal Transmission
The SP013018 Miniature Slip Ring provides reliable rotary electrical connections for high-speed industrial and testing equipment. Its compact structure allows installation in tight spaces while maintaining precision signal transmission.
Gold-to-gold contacts and advanced brush modulation technology reduce electrical resistance fluctuations and extend the slip ring's operational life. Rated up to 10000 RPM, it is suitable for strain gauge, thermocouple, and sensor signal transmission.
Application Areas
Used for high-speed testing platform strain gauge signals, thermocouple signals, and similar applications, including aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.
Technical Parameters
Electrical Specifications
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)
Mechanical Specifications
Rated Speed 0-10000 rpm
Working Life 10 million rpm
Operating Temperature -50℃ ~ 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 stainless steel
Maximum Starting Torque 0.5N.cm
Outline Drawing
SP013018 High Speed Slip Ring10000 RPM Miniature Slip Ring for Signal Transmission 0
Technical Advantages
  • Gold metal contact technology ensures ultra-long service life through advanced friction pair technology
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for more reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation technology with near-zero pressure brush design extends slip ring life by 1/3
  • High-speed capability reaching maximum speed of 8000 revolutions per minute (with cooling system)
  • Extended lifespan with maximum durability up to 100 million revolutions per minute
