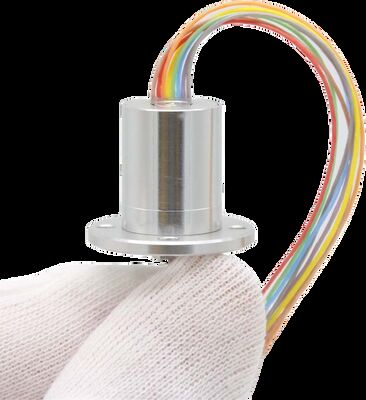

Customizable Multi-Circuit 6 Channel Slip Ring Manufacturer Direct Supply

1
MOQ
200-800USD
Price
Customizable Multi-Circuit 6 Channel Slip Ring Manufacturer Direct Supply
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

6 channel slip ring manufacturer

,

customizable multi-circuit slip ring

,

mini slip ring with warranty
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

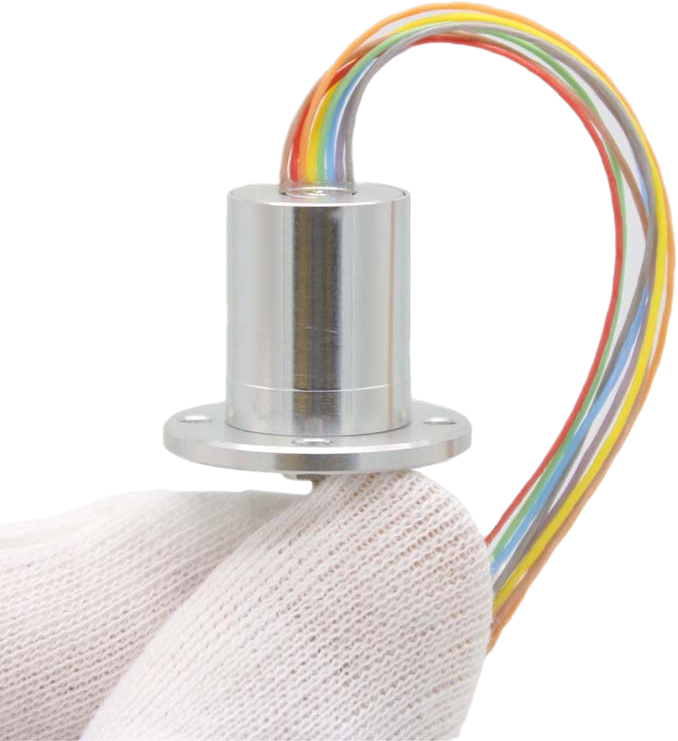

Customizable Multi-Circuit 6 Channel Slip Ring
SP018006 Mini Electric Slip Ring

High-Speed Miniature Slip Ring - Reliable Gold-Gold Contact Technology

This miniature slip ring supports 0-3000 rpm rotation, rated 1A current, and insulation resistance 250MΩ/250V DC. Gold-gold contacts and ≤10mΩ dynamic resistance ensure reliable electrical transmission. Compact (<30g) and precise (tolerance <0.01mm, axial displacement <0.01mm), with IP51 protection, it's ideal for industrial automation and robotics.

Technical Parameters
Electrical Specifications
Design Loop 6
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-3000 rpm
Working Life ≥100h storage life: ≥12 years
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Stainless steel + aluminum alloy
Maximum Starting Torque 3m N.m
Weight <30g (not include wire)
IP Grade IP51
Outline Drawing
Customizable Multi-Circuit 6 Channel Slip Ring Manufacturer Direct Supply 0
Technical Advantages
  • Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Ensures concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for more reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Modulation: Nearly zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 revolutions per minute (with cooling system)
  • Extended Lifespan: Maximum lifespan up to 100 million revolutions
