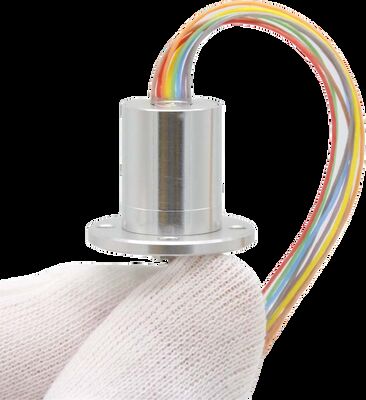

Industrial Small Slip Ring 6 Circuits for 360 Degree Rotation Equipment

1
MOQ
200-800USD
Price
Industrial Small Slip Ring 6 Circuits for 360 Degree Rotation Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

industrial small slip ring

,

6 circuit slip ring

,

360 degree rotation slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Industrial Small Slip Ring - 6 Circuits for 360° Rotation Equipment
SP018006 Mini Electric Slip Ring

High-Speed Miniature Slip Ring with Reliable Gold-Gold Contact Technology

This compact slip ring delivers high-speed rotation up to 3000 RPM, features gold-gold contacts for superior conductivity, and maintains low starting torque of 3m N.m. Constructed with stainless steel and aluminum alloy housing for maximum durability. Rated at 1A with 250MΩ insulation resistance, IP51 protection rating, and operating temperature range of -45℃ to 60℃.

Technical Specifications
Electrical Specifications
Design Loop 6 Circuits
Insulation Resistance 250MΩ/250V/DC
Current Rating 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change ≤10mΩ
Mechanical Specifications
Rated Speed 0-3000 RPM
Working Life ≥100 hours (Storage life: ≥12 years)
Operating Temperature -45℃ to 60℃
Contact Material Gold-Gold
Shell Material Stainless Steel + Aluminum Alloy
Maximum Starting Torque 3m N.m
Weight <30g (excluding wires)
IP Grade IP51
Outline Drawing
Industrial Small Slip Ring 6 Circuits for 360 Degree Rotation Equipment 0
Technical Advantages
  • Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves slip ring contact surface smoothness of Ra0.02 for reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High-Speed Capability: Maximum speed of 8000 RPM with cooling system
  • Extended Lifespan: Maximum operational life up to 100 million revolutions
