Reliable High Speed Slip Ring 3000 RPM for High Frequency Data Transmission

1
MOQ
200-800USD
Price
Reliable High Speed Slip Ring 3000 RPM for High Frequency Data Transmission
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

high speed slip ring 3000 RPM

,

mini slip ring high frequency

,

slip ring for data transmission
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

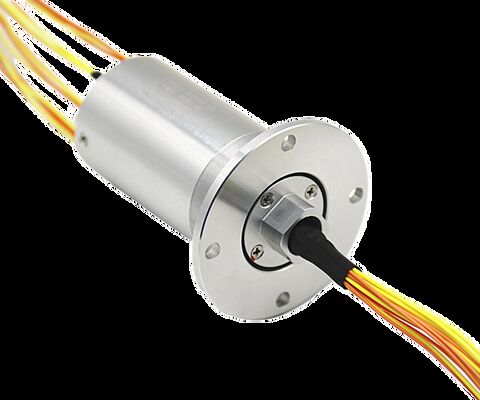

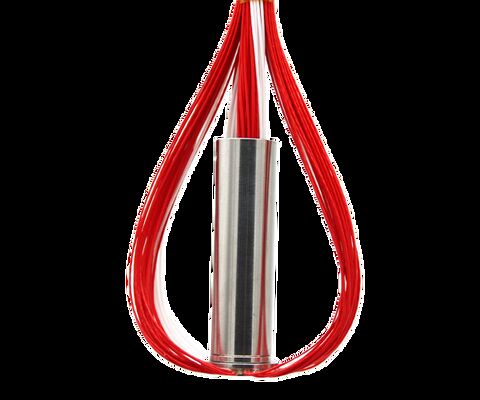

Reliable High Speed Slip Ring 3000 RPM for High Frequency Data Transmission

SP018006 Mini Electric Slip Ring
Our miniature slip ring is engineered for high-speed industrial applications, supporting rotation speeds of 0-3000 RPM. Featuring advanced gold-gold friction pair contacts, it delivers ultra-low dynamic resistance (≤10mΩ) and stable electrical transmission. The robust stainless steel and aluminum alloy housing with IP51 protection ensures durability in demanding environments.

Key Features
  • Gold-gold contact technology for reliable performance
  • Ultra-low dynamic resistance (≤10mΩ)
  • Rated current: 1A
  • Insulation resistance: 250MΩ/250V DC
  • Dielectric strength: >250VAC/50Hz/60s
  • Compact design (<30g weight)
  • Precision manufacturing (tolerance <0.01mm)
  • IP51 protection rating
Technical Specifications
Electrical Specifications
Design Loop 6
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-3000 RPM
Working Life ≥100 hours (Storage life: ≥12 years)
Operating Temperature -45℃ to 60℃
Contact Material Gold-gold
Shell Material Stainless steel + aluminum alloy
Maximum Starting Torque 3m N.m
Weight <30g (excluding wire)
IP Grade IP51
Outline Drawing
Reliable High Speed Slip Ring 3000 RPM for High Frequency Data Transmission 0
Technical Advantages
  • Gold Contact Technology: Advanced friction pair technology using gold-gold contacts ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for enhanced reliability
  • Precision Manufacturing: Dimensional tolerance <0.01mm and axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Technology: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 RPM with cooling system
  • Extended Lifespan: Maximum operational life of up to 100 million revolutions
