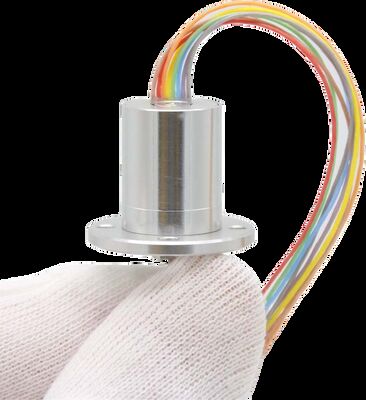

High Speed Slip Ring 6 Channel 1A 3000RPM Electrical Rotary Joint

1
MOQ
200-800USD
Price
High Speed Slip Ring 6 Channel 1A 3000RPM Electrical Rotary Joint
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

6 channel high speed slip ring

,

1A electrical rotary joint

,

3000RPM mini slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
High Speed Slip Ring - 6 Channel 1A 3000RPM Electrical Rotary Joint

The SP018006 mini electric slip ring provides stable power and signal transmission for industrial machinery and automation systems. Featuring gold-to-gold contact technology with dynamic resistance ≤10mΩ and speeds up to 3000 RPM, this compact slip ring ensures long-lasting reliability in space-constrained applications.

Applications
  • Robotics systems
  • Assembly machines
  • Rotating test platforms
Electrical Specifications
Design Loop 6
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-3000 rpm
Working Life ≥100 hours (Storage life: ≥12 years)
Operating Temperature -45℃ to 60℃
Contact Material Gold-gold
Shell Material Stainless steel + aluminum alloy
Maximum Starting Torque 3m N.m
Weight <30g (excluding wire)
IP Grade IP51
Outline Drawing
High Speed Slip Ring 6 Channel 1A 3000RPM Electrical Rotary Joint 0
Technical Advantages
  • Core friction pair technology with gold metal contacts ensures ultra-long service life
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable performance
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation with near-zero pressure design extends slip ring life by 1/3
  • High-speed capability up to 8000 RPM with cooling system
  • Extended lifespan up to 100 million revolutions
