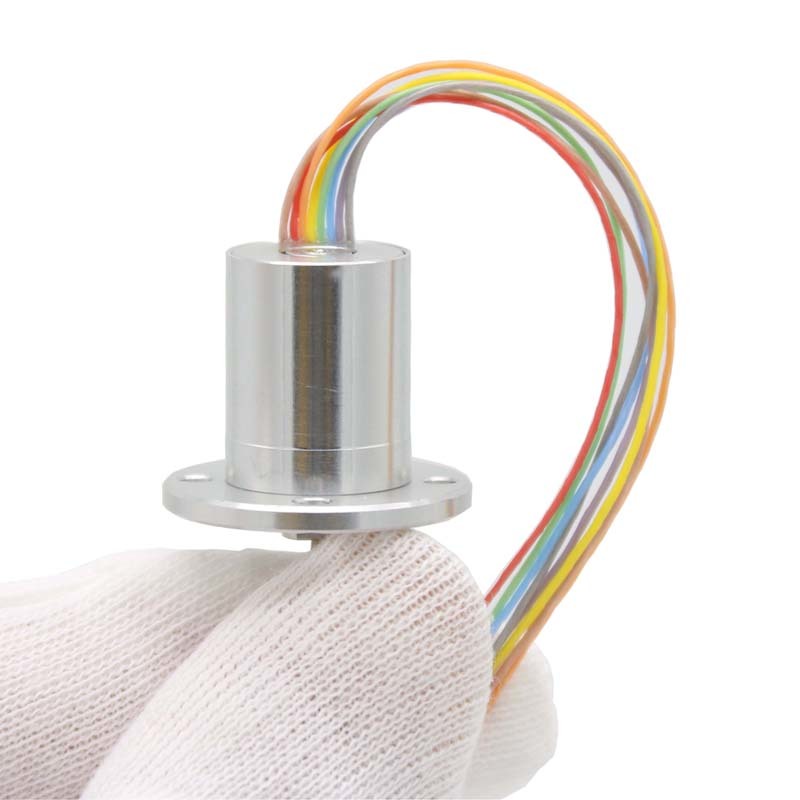

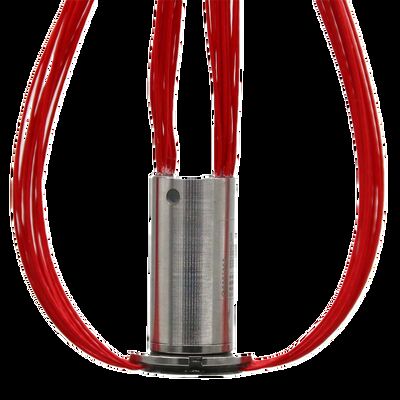

Rotary Electrical Slip Ring 6 Channels for Drone Monitoring Devices

SP018006 mini electric slip ring engineered for industrial automation applications. This precision slip ring features gold-to-gold friction pair contacts, axial displacement <0.01 mm, dimensional tolerance <0.01 mm, and high precision casting for concentricity ≤0.01 mm.

Rated for 1A per circuit with 6 circuits total, featuring dynamic resistance ≤10 mΩ, working life ≥100 hours, and storage life ≥12 years. Designed for reliability in harsh industrial conditions including radar platforms, automated machinery, and precision turntables.

• Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
• Integrated Casting Process: Guarantees concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Achieves slip ring contact surface smoothness of Ra0.02 for more reliable contact
• Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
• Advanced Brush Wire Modulation: Nearly zero pressure brush design extends slip ring life by 1/3
• High Speed Capability: Maximum speed of 8000 revolutions per minute (with cooling system)
• Extended Lifespan: Maximum lifespan of up to 100 million revolutions
