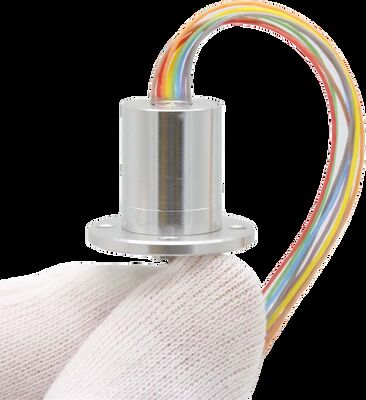

Mini Capsule Slip Ring 6 Channels for CCTV Camera Rotation Systems

1
MOQ
200-800USD
Price
Mini Capsule Slip Ring 6 Channels for CCTV Camera Rotation Systems
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

Mini capsule slip ring 6 channels

,

CCTV camera rotation slip ring

,

Mini slip ring with warranty
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Mini Capsule Slip Ring - 6 Channels for CCTV Camera Rotation Systems

The SP018006 mini electric slip ring is a compact component designed for reliable signal and power transmission in rotating camera and sensor systems. Featuring gold-gold contact material and maximum speed of 3000 RPM, this slip ring ensures low noise operation and extended service life.

Technical Specifications
Electrical Specifications
Parameter Specification
Design Loop 6
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Parameter Specification
Rated Speed 0-3000 rpm
Working Life ≥100 hours (Storage life: ≥12 years)
Operating Temperature -45℃ to 60℃
Contact Material Gold-gold
Shell Material Stainless steel + aluminum alloy
Maximum Starting Torque 3m N.m
Weight <30g (excluding wire)
IP Grade IP51
Outline Drawing
Mini Capsule Slip Ring 6 Channels for CCTV Camera Rotation Systems 0
Technical Advantages
  • Gold Metal Contact Technology: Advanced friction pair technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for reliable performance
  • Precision Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
  • Advanced Brush Wire Technology: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 RPM with cooling system
  • Extended Lifespan: Maximum operational life of up to 100 million revolutions
Applications

Ideal for PTZ cameras, UAV sensors, industrial monitoring equipment, and other rotating systems requiring reliable power and signal transmission.
