Electrical Slip Ring 3000RPM 6 Channels for Industrial Application

1
MOQ
200-800USD
Price
Electrical Slip Ring 3000RPM 6 Channels for Industrial Application
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

6 channel electrical slip ring

,

3000RPM mini slip ring

,

industrial slip ring with warranty
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

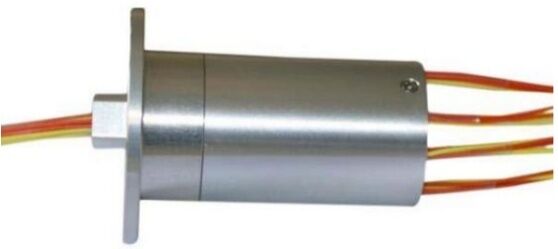

SP018006 Mini Electric Slip Ring - 3000RPM 6 Channels
Perfect for lab testing and measurement systems, this slip ring delivers stable signals with dynamic resistance ≤10 mΩ, dielectric strength >250VAC, and insulation resistance 250M Ω/250V DC. Precision manufacturing ensures dimensional tolerance <0.01 mm and axial displacement <0.01 mm, providing ultra-smooth rotation for rate turntables and optical testing platforms.
Applications
  • Calibration equipment
  • Test platforms
  • Industrial automation
  • Measurement systems
  • Optical testing platforms
Technical Parameters
Electrical Specifications
Design Loop 6
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-3000 rpm
Working Life ≥100h (Storage life: ≥12 years)
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Stainless steel + aluminum alloy
Maximum Starting Torque 3m N.m
Weight <30g (not including wire)
IP Grade IP51
Outline Drawing
Electrical Slip Ring 3000RPM 6 Channels for Industrial Application 0
Technical Advantages
• Gold metal contact technology ensures ultra-long service life through advanced friction pair technology
• Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable performance
• Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
• Advanced brush wire modulation technology with near-zero pressure design extends slip ring life by 1/3
• High-speed capability up to 8000 revolutions per minute (with cooling system)
• Exceptional longevity with maximum lifespan up to 100 million revolutions
