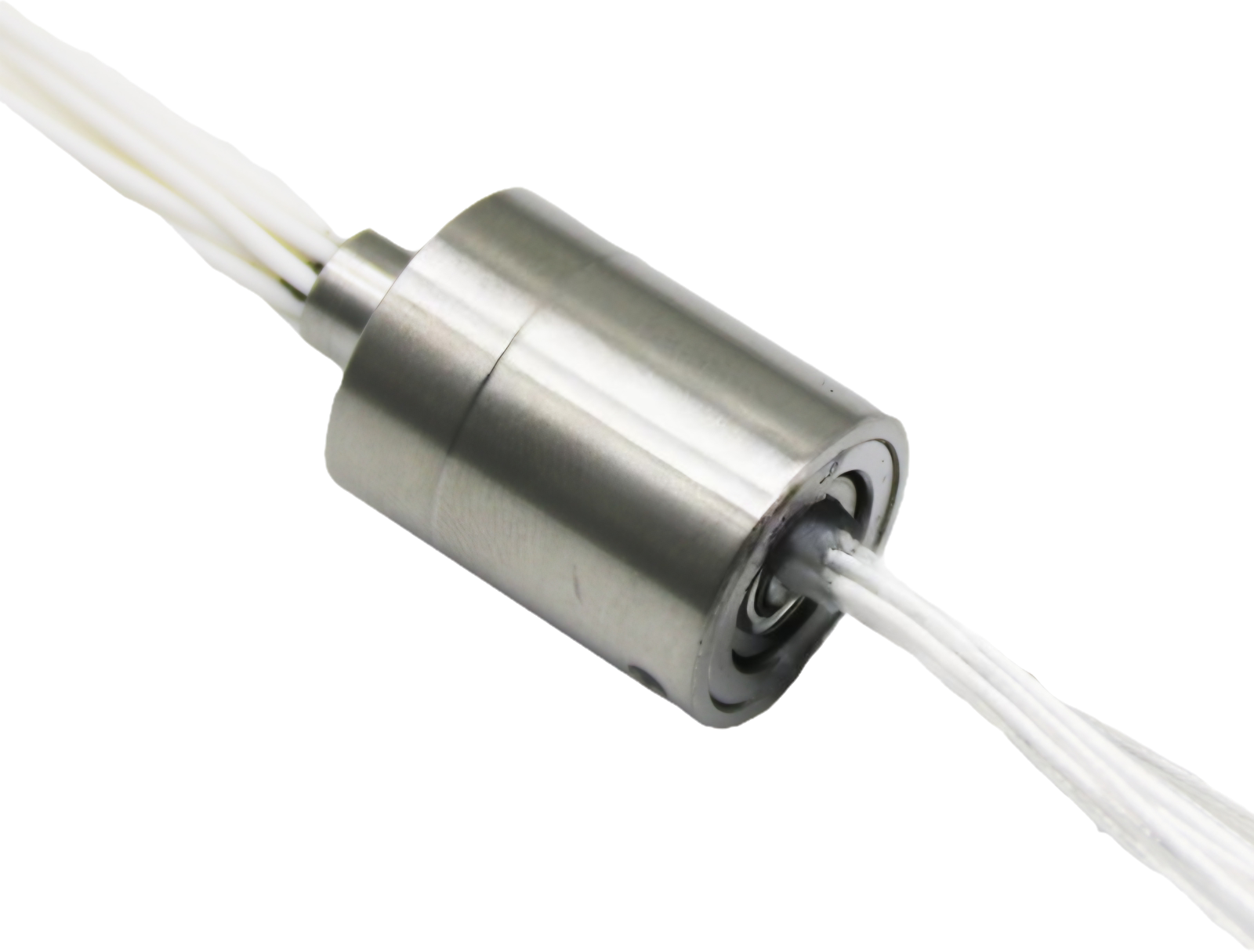

Precision Electrical Slip Ring 6 Circuits 1A for Aerial Camera System

SP018006 mini electric slip ring
This 6-circuit electrical slip ring delivers stable power and signal transmission for industrial machinery and automation systems. Featuring gold-to-gold contact technology, dynamic resistance ≤10 mΩ, insulation resistance 250M Ω/250V DC, and dielectric strength >250VAC/50Hz/60s, it supports high-speed rotation up to 3000 RPM.

Compact and lightweight (<30g) with a stainless steel + aluminum alloy housing, it operates reliably in −45°C to 60°C environments.

• Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life
• Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
• Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
• Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance
• Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
• High speed, this slip ring can reach a maximum speed of 8000 revolutions per minute (with cooling system)
• Long lifespan, with a maximum lifespan of up to 100 million revolutions per minute

This high-speed electrical slip ring is widely used in applications that require continuous 360° rotation with simultaneous power and signal transmission, including:

• Industrial automation equipment
• Robotics and robotic arms
• UAV gimbal systems
• Rotating surveillance cameras (PTZ cameras)
• Radar and antenna systems
• Test and measurement equipment
• Precision rotary platforms
• Medical imaging systems

• Experienced manufacturer with professional engineering team
• High precision manufacturing process
• Strict quality control system
• Custom slip ring solutions available
• Fast technical support and global delivery
