Electrical Rotary Slip Ring 6 Circuits for PTZ Surveillance Cameras

1
MOQ
200-800USD
Price
Electrical Rotary Slip Ring 6 Circuits for PTZ Surveillance Cameras
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

6 circuit rotary slip ring

,

PTZ camera slip ring

,

electrical slip ring for surveillance
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

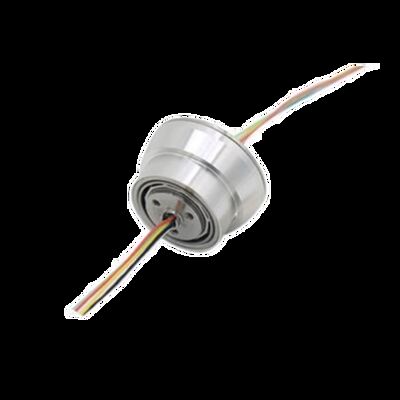

Electrical Rotary Slip Ring 6 Circuits for PTZ Surveillance Cameras
SP018006 mini electric slip ring - This compact slip ring enables reliable signal and power transmission for rotating cameras and sensors. With maximum speed 3000 RPM, dynamic resistance ≤10 mΩ, and gold-gold contact material, it ensures low noise and long service life.
Technical Specifications
Electrical Specifications
Design loop 6
Insulation resistance 250MΩ/250V/DC
Current 1A
Dielectric strength >250VAC/50Hz/60s
Dynamic resistance change value ≤10mΩ
Mechanical Specifications
Rated speed 0-3000 rpm
Working life ≥100h storage life: ≥12 years
Operating temperature -45℃ ~ 60℃
Contact material Gold-gold
Shell material Stainless steel + aluminum alloy
Maximum starting torque 3m N.m
Weight <30g (not include wire)
IP grade IP51
Outline Drawing
Electrical Rotary Slip Ring 6 Circuits for PTZ Surveillance Cameras 0
Technical Advantages
  • Core friction pair technology with gold metal contacts ensures ultra-long service life
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation with near-zero pressure design extends slip ring life by 1/3
  • High-speed capability up to 8000 RPM with cooling system
  • Extended lifespan up to 100 million revolutions
Application Scenarios
This high-speed electrical slip ring is widely used in applications requiring continuous 360° rotation with simultaneous power and signal transmission:
  • Industrial automation equipment
  • Robotics and robotic arms
  • UAV gimbal systems
  • Rotating surveillance cameras (PTZ cameras)
  • Radar and antenna systems
  • Test and measurement equipment
  • Precision rotary platforms
  • Medical imaging systems
Why Choose Our Slip Rings
  • Experienced manufacturer with professional engineering team
  • High precision manufacturing process
  • Strict quality control system
  • Custom slip ring solutions available
  • Fast technical support and global delivery
Frequently Asked Questions
What is a slip ring used for?
A slip ring transmits power, signals, or data between stationary and rotating parts in rotating equipment such as robotics, radar systems, and industrial automation machinery.
What is the maximum speed of this slip ring?
This slip ring supports rotational speeds up to 3000 RPM, making it suitable for high-speed rotating applications.
What industries use slip rings?
Slip rings are widely used in industrial automation, robotics, UAV systems, radar antennas, medical equipment, and rotating cameras.
Can the slip ring be customized?
Yes, the slip ring can be customized with different circuits, current ratings, sizes, and protection levels depending on the application.
