Compact Capsule Slip Ring for UAV Surveillance System China Slip Ring Manufacturer

1
MOQ
200-800USD
Price
Compact Capsule Slip Ring for UAV Surveillance System China Slip Ring Manufacturer
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-3000 Rpm
Design Loop: 6
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -45℃ ~ 60℃
Maximum Current: 1A
Shell Material: Stainless Steel+alluminum Alloy
Highlight:

compact capsule slip ring

,

mini slip ring for UAV

,

surveillance system slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP018006
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

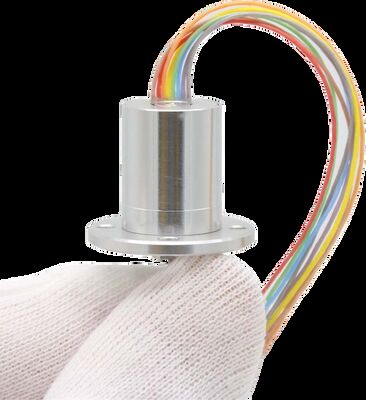

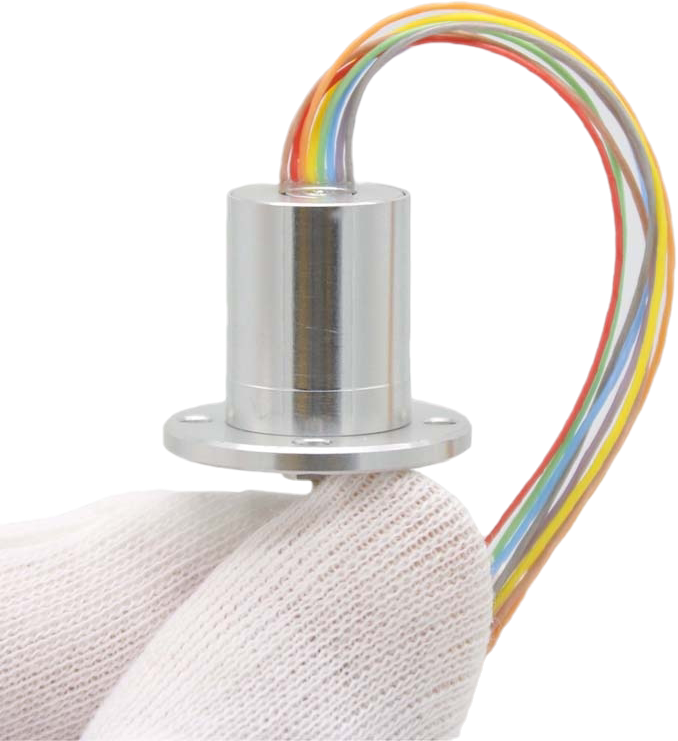

Compact Capsule Slip Ring for UAV Surveillance Systems
SP018006 mini electric slip ring designed for precision robotics and UAV systems. This compact slip ring supports continuous 360° rotation while transmitting 6 circuits at 1A each, featuring low starting torque and high reliability for demanding applications.
Key Features
  • Continuous 360° rotation capability
  • 6 circuits at 1A each
  • Low starting torque: 3 mN·m
  • Dynamic resistance ≤10 mΩ
  • Contact surface smoothness Ra0.02
  • Stainless steel + aluminum alloy housing
  • IP51 protection rating
  • Operating temperature: −45°C to 60°C
Technical Specifications
Electrical Specifications
Design Loop 6
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-3000 rpm
Working Life ≥100h (storage life: ≥12 years)
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Stainless steel + aluminum alloy
Maximum Starting Torque 3m N.m
Weight <30g (not including wire)
IP Grade IP51
Outline Drawing
Compact Capsule Slip Ring for UAV Surveillance System China Slip Ring Manufacturer 0
Technical Advantages
  • Gold metal contact technology for ultra-long service life
  • Integrated casting process with concentricity ≤ 0.01mm
  • Mirror processing technology with contact surface smoothness Ra0.02
  • Precision component manufacturing with dimensional tolerance <0.01mm
  • Advanced brush wire modulation technology extending life by 1/3
  • High-speed capability up to 8000 RPM (with cooling system)
  • Long lifespan up to 100 million revolutions
Application Scenarios
This high-speed electrical slip ring is widely used in applications requiring continuous 360° rotation with simultaneous power and signal transmission:
  • Industrial automation equipment
  • Robotics and robotic arms
  • UAV gimbal systems
  • Rotating surveillance cameras (PTZ cameras)
  • Radar and antenna systems
  • Test and measurement equipment
  • Precision rotary platforms
  • Medical imaging systems
Why Choose Our Slip Rings
  • Experienced manufacturer with professional engineering team
  • High precision manufacturing process
  • Strict quality control system
  • Custom slip ring solutions available
  • Fast technical support and global delivery
Frequently Asked Questions
What is a slip ring used for?
A slip ring transmits power, signals, or data between stationary and rotating parts in rotating equipment such as robotics, radar systems, and industrial automation machinery.
What is the maximum speed of this slip ring?
This slip ring supports rotational speeds up to 3000 RPM, making it suitable for high-speed rotating applications.
What industries use slip rings?
Slip rings are widely used in industrial automation, robotics, UAV systems, radar antennas, medical equipment, and rotating cameras.
Can the slip ring be customized?
Yes, the slip ring can be customized with different circuits, current ratings, sizes, and protection levels depending on the application requirements.
