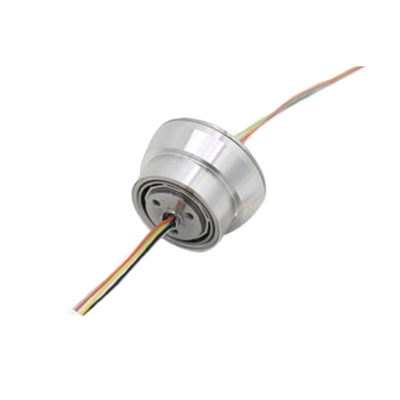

Flat Pancake Slip Ring Low Profile Multi Circuits Industrial Ring

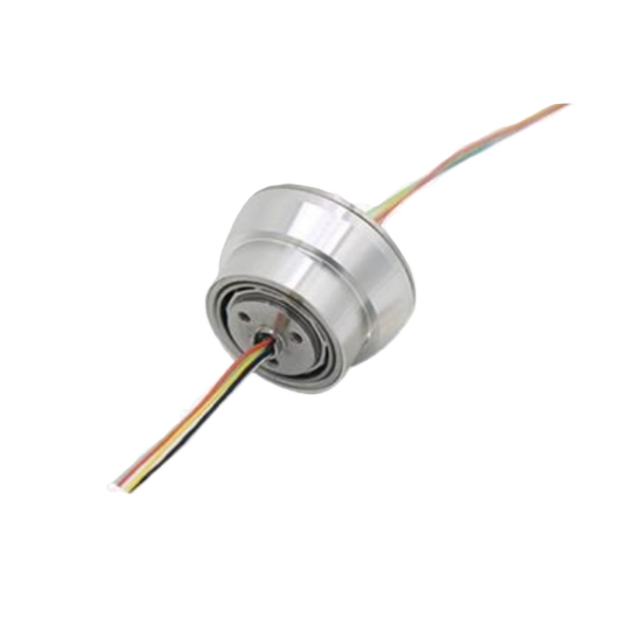

SP013008 8-Channel Slip Ring is a high-performance miniature rotary connector designed to transmit power and electrical signals between stationary and rotating components. The advanced gold-plated contact technology significantly improves conductivity while reducing wear and electrical interference.

With precision mirror processing technology, the contact surface smoothness reaches high standards, ensuring stable operation and enhanced transmission reliability. The slip ring is suitable for continuous rotation applications in robotics, UAV gimbals, industrial automation systems, and intelligent monitoring equipment.

Advantages:

• High reliability transmission
• Precision manufacturing technology
• Compact structure for easy installation
• Excellent signal integrity
• Stable operation under continuous rotation
• Customizable rotational speed

• Slip ring's core technology - friction pair technology: gold metal contact technology, ensuring ultra long service life
• Integrated casting process: Ensures concentricity between ring groove and bearing ≤ 0.01mm
• Mirror processing technology: Ensures slip ring contact surface smoothness reaches Ra0.02 for more reliable contact
• Precision component manufacturing process: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
• Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process extends slip ring life by 1/3
• High speed capability: Maximum speed of 8000 revolutions per minute (with cooling system)
• Long lifespan: Maximum lifespan up to 100 million revolutions per minute

This high-speed electrical slip ring is widely used in applications requiring continuous 360° rotation with simultaneous power and signal transmission, including:

• Industrial automation equipment
• Robotics and robotic arms
• UAV gimbal systems
• Rotating surveillance cameras (PTZ cameras)
• Radar and antenna systems
• Test and measurement equipment
• Precision rotary platforms
• Medical imaging systems

• Experienced manufacturer with professional engineering team
• High precision manufacturing process
• Strict quality control system
• Custom slip ring solutions available
• Fast technical support and global delivery

A slip ring is used to transmit power, signals, or data between stationary and rotating parts in rotating equipment such as robotics, radar systems, and industrial automation machinery.

This slip ring supports rotational speeds up to 3000 RPM, making it suitable for high-speed rotating applications.

Slip rings are widely used in industrial automation, robotics, UAV systems, radar antennas, medical equipment, and rotating cameras.

Yes, the slip ring can be customized with different circuits, current ratings, sizes, and protection levels depending on the application.
