Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated

1 piece
MOQ
200~800 USD
Price
Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated
Features Gallery Product Description Chat Now
Features
Specifications
Mirror Processing Technology: Contact Surface Finish Ra0.02 For Reliable Electrical Contact
Advanced Brush Filament Modulation Process: Innovative Brush Design For Extended Lifespan
Precision Parts Manufacturing Process: Dimensional Tolerance <0.01mm For High-precision Components
Electrical Strength: ≥250VAC/50Hz/60s
Ingress Protection: IP65 For Protection Against Harsh Environments
Rated Speed: 2000-18000 Rpm
Continuous Operation Capability: Operates Continuously For 90 Hours At 18000 Rpm
Integrated Pouring Process: Concentricity Between Ring Groove And Bearing ≤0.01mm
Highlight:

high speed slip ring 18000 RPM

,

marine radar slip ring IP65

,

high RPM slip ring waterproof
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP040028-G05
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Marine Radar Slip Ring High Speed Slip Ring
Product Attributes
Attribute Value
Mirror Processing Technology Contact surface finish Ra0.02 for reliable electrical contact
Advanced Brush Filament Modulation Process Innovative brush design for extended lifespan
Precision Parts Manufacturing Process Dimensional tolerance <0.01mm for high-precision components
Electrical Strength ≥250VAC/50Hz/60s
Ingress Protection IP65 for protection against harsh environments
Rated Speed 2000-18000 Rpm
Continuous Operation Capability Operates continuously for 90 hours at 18000 rpm
Integrated Pouring Process Concentricity between ring groove and bearing ≤0.01mm
Product Description
The High Speed Slip Ring is engineered for demanding high-speed applications with a rated voltage/current of 80VDC/1A. Its continuous operation capability of 90 hours at 18000 rpm makes it ideal for long-duration industrial tasks requiring consistent performance.
Key Features
  • Product Name: High Speed Slip Ring
  • Rated Voltage/current: 80VDC/1A
  • Working Life: 100 Million Revolutions
  • High-Speed Operation: 18000 rpm without cooling system
  • Core Friction Pair Technology: Gold-gold contact for low-voltage signals
  • Ingress Protection: IP65 rated for harsh environments
Technical Parameters
Parameter Specification
Core Friction Pair Technology Gold-gold contact technology for low-voltage weak current signals
Working Loops 12-20-28 Channels Are Optional
Precision Parts Manufacturing Process Dimensional tolerance <0.01mm
Advanced Brush Filament Modulation Process Innovative brush design for extended lifespan
High-Speed Operation 18000 rpm without cooling system
Rated Voltage/current 80VDC/1A
Integrated Pouring Process Concentricity ≤0.01mm
Rated Speed 2000-18000 Rpm
Ingress Protection IP65
Continuous Operation Capability 90 hours at 18000 rpm
Applications
SPR-ing's High Speed Slip Ring (Model SP040028-G05) is designed for demanding industrial applications including:
  • Industrial automation systems and robotics
  • Precision machinery and wind turbines
  • Marine equipment and radar systems
  • Data transmission and communication systems
Product Images

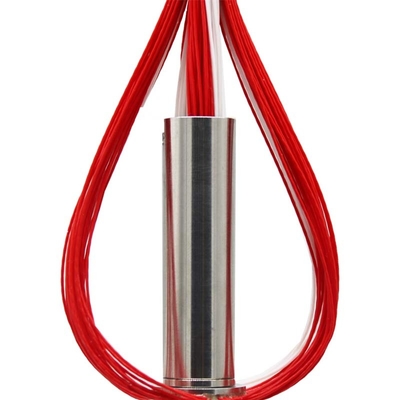

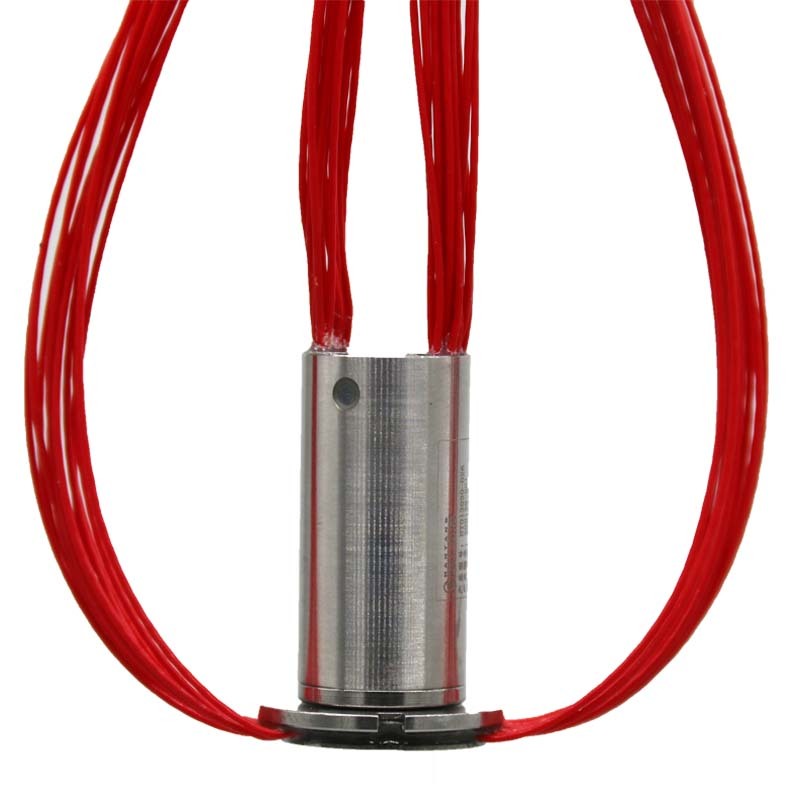

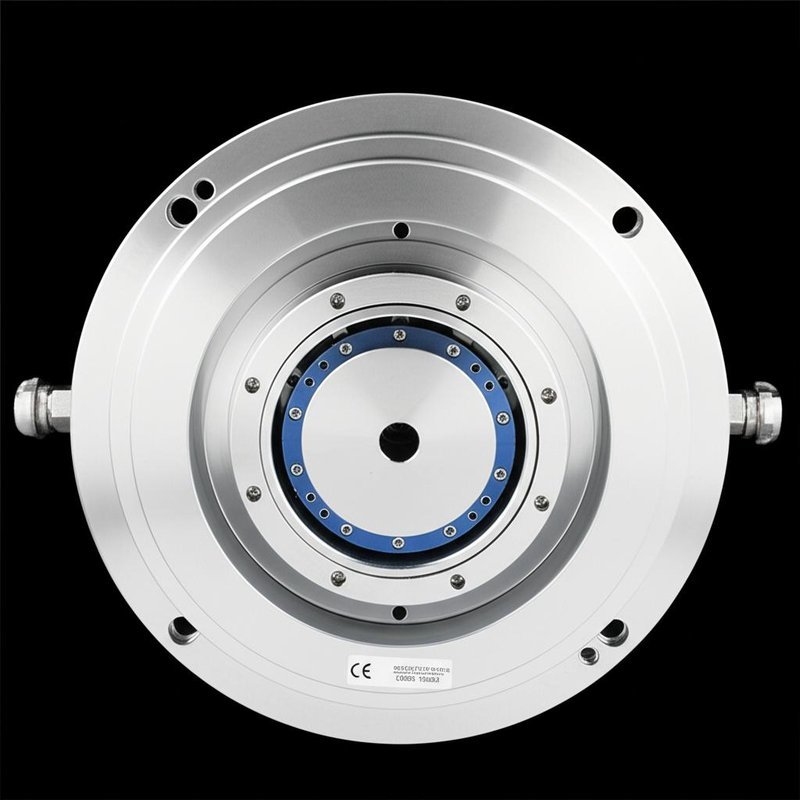

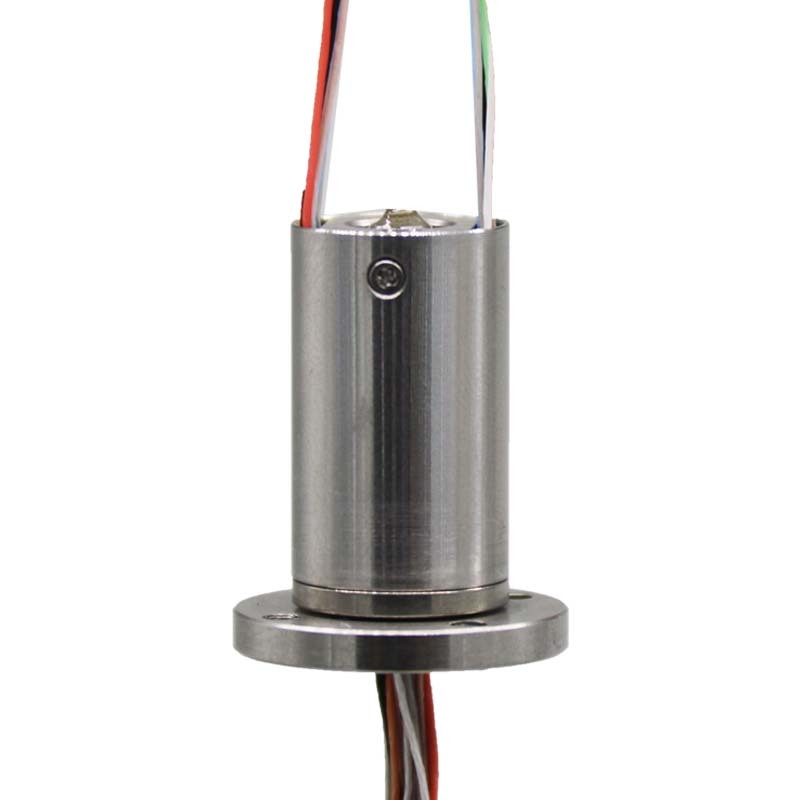

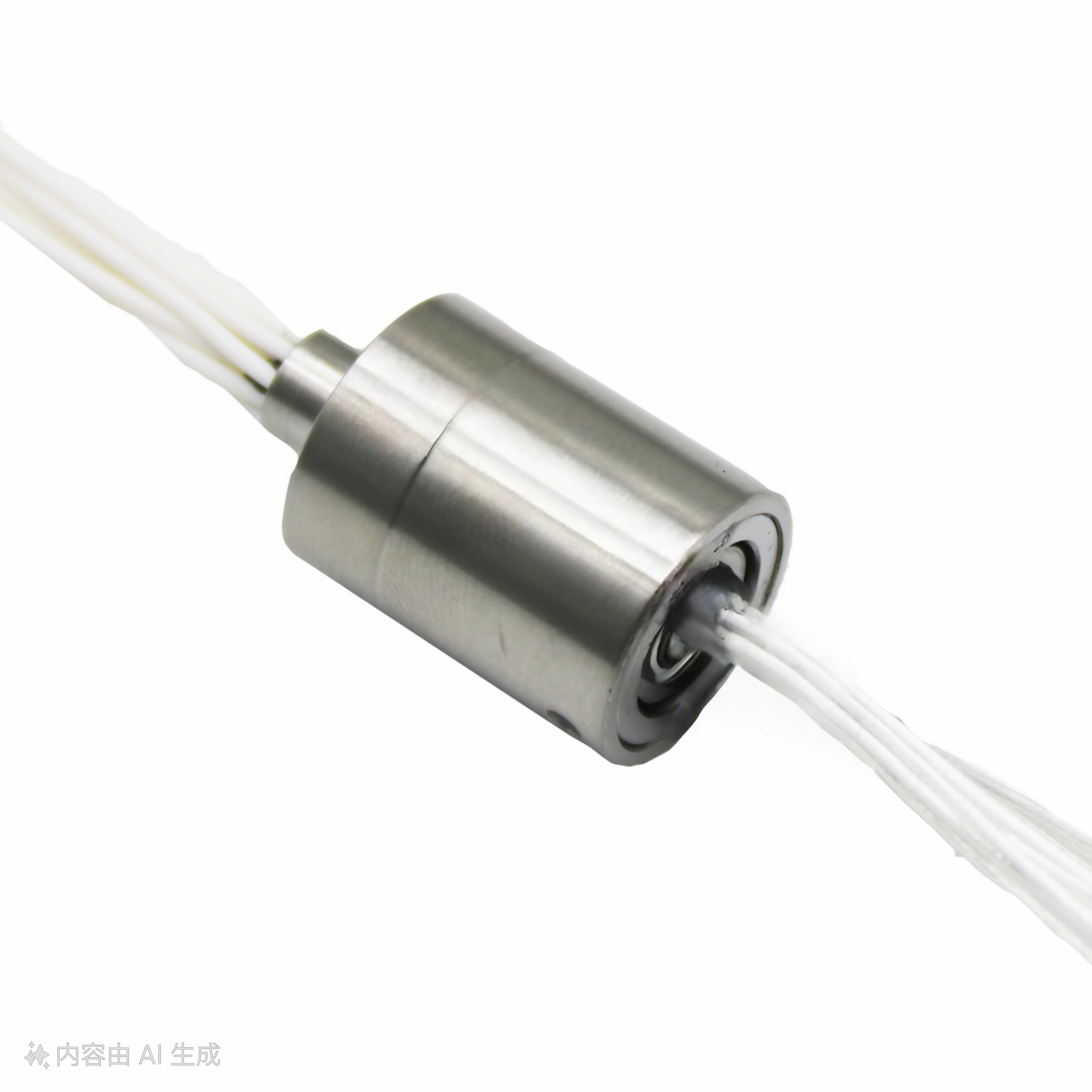

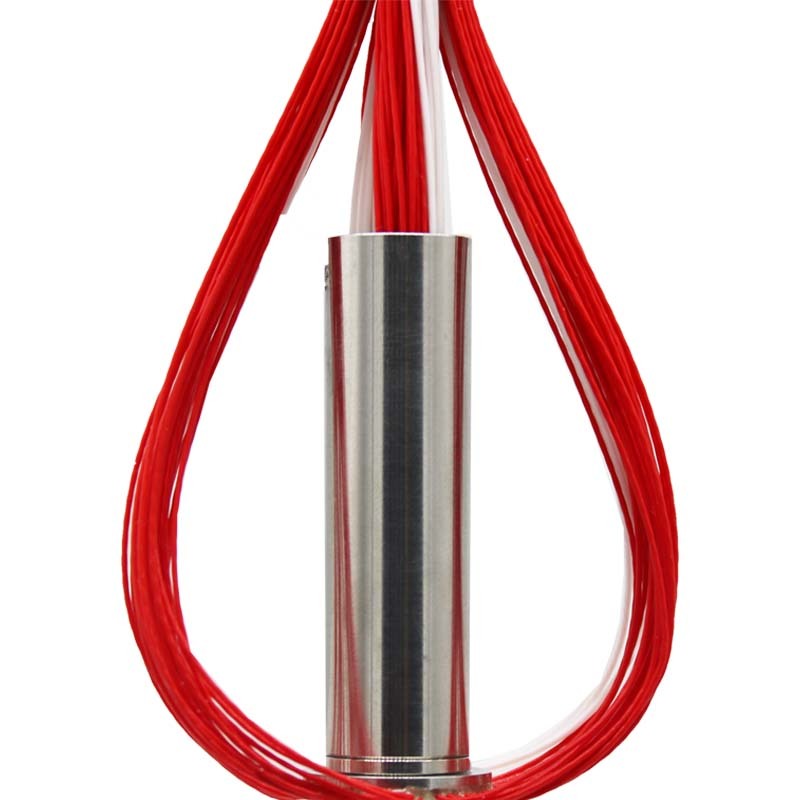

Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated 0 Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated 1 Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated 2 Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated 3 Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated 4 Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated 5 Marine Radar High Speed Slip Ring 18000 RPM IP65 Rated 6
Support and Services
  • Expert troubleshooting assistance
  • Installation guidance and support
  • Maintenance recommendations
  • Warranty services for eligible products
Packing and Shipping
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
Frequently Asked Questions
Q: What is the brand name of this high-speed slip ring?
A: The brand name is SPR-ing.
Q: What is the model number?
A: Model SP040028-G05.
Q: Where is it manufactured?
A: Shenzhen, China.
Q: What is the minimum order quantity?
A: 1 piece.
Q: What payment methods are accepted?
A: L/C and T/T.
