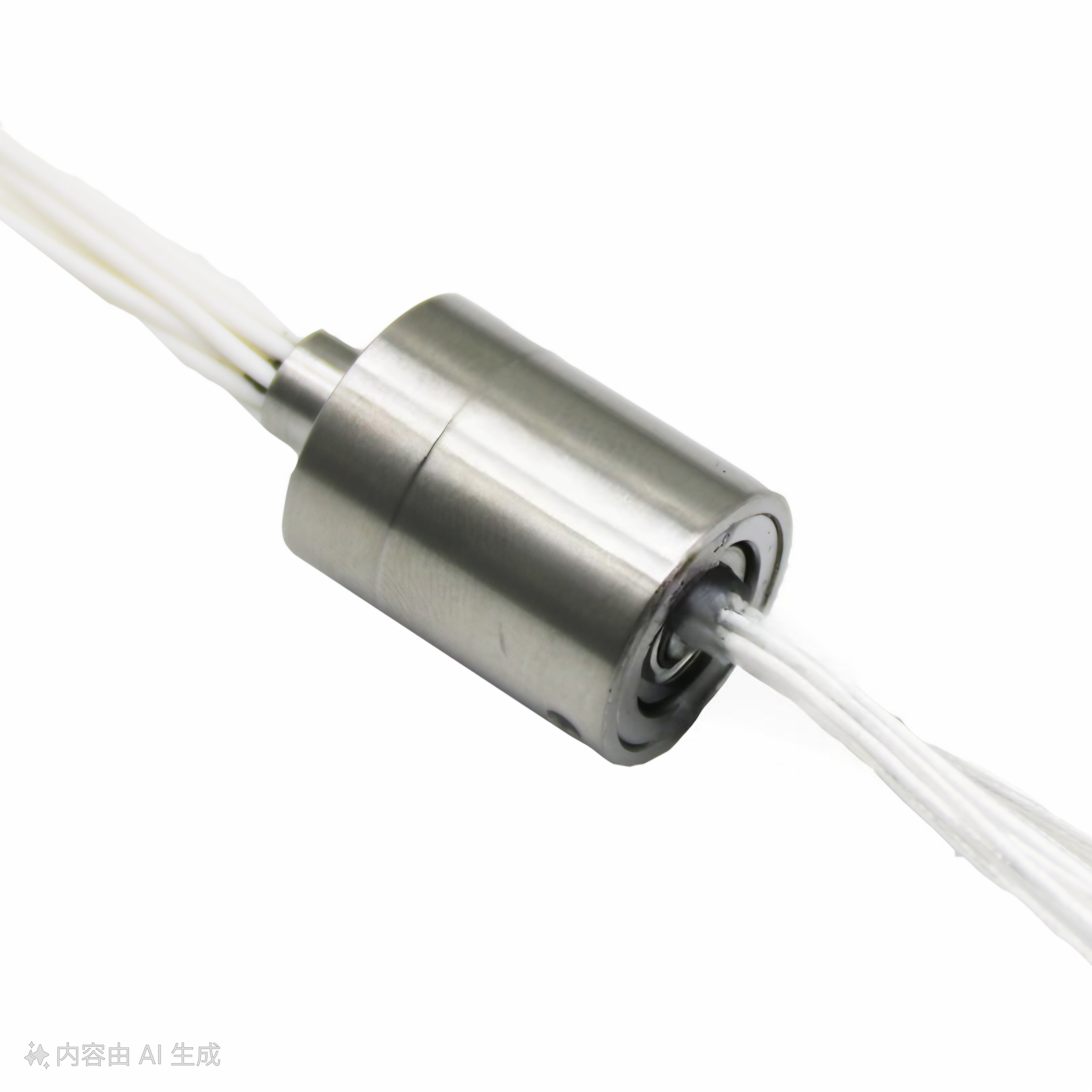

18 Loop High Speed Slip Ring for Radar 18000 RPM 96H Life

• Core Friction Pair Technology: Gold-gold contact minimizes resistance and wear, ensuring extended service life and reliable operation in critical applications.
• Integrated Pouring Process: Maintains concentricity tolerance ≤0.01mm for vibration-free operation under high-speed rotation.
• Mirror Processing Technology: Achieves surface smoothness of Ra0.02 for optimal contact area and minimal electrical resistance.
• Precision Manufacturing: Components manufactured to tolerances below 0.01mm for consistent performance and reliability.
• Advanced Brush Design: Near-zero pressure brush system extends lifespan by 33% compared to conventional designs.
• Compact Structure: Small footprint enables integration into space-constrained applications without performance compromise.
• Robust Construction: 304 stainless steel housing provides exceptional durability and resistance to harsh environments.
• High-Speed Performance: Stable operation at 18,000 rpm for demanding rotational applications.
• Extended Operation: Continuous 96-hour operation at maximum speed demonstrates exceptional endurance.

Our dedicated facility specializes in slip ring conductor manufacturing, with ring surface/axis machining processes achieving international-leading standards in mirror cutting technology.

This facility researches optimal material combinations for brush wires and conductive rings, with 12 specialized friction pair technologies developed for extreme conditions including high-speed operation, corrosive environments, and high-temperature applications.

Supported by China's Ministry of Science and Technology, our laboratory features 5 test benches capable of evaluating slip rings at speeds up to 90,000 rpm and torque outputs to 5.5 N.m.
