Home /Products/High Speed Slip Ring/Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals

Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals

1 piece
MOQ
200~800 USD
Price
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals
Features Gallery Product Description Chat Now
Features
Specifications
Mirror Processing Technology: Contact Surface Finish Ra0.02 For Reliable Electrical Contact
Advanced Brush Filament Modulation Process: Innovative Brush Design For Extended Lifespan
Precision Parts Manufacturing Process: Dimensional Tolerance <0.01mm For High-precision Components
Electrical Strength: ≥250VAC/50Hz/60s
Ingress Protection: IP65 For Protection Against Harsh Environments
Rated Speed: 2000-18000 Rpm
Continuous Operation Capability: Operates Continuously For 90 Hours At 18000 Rpm
Integrated Pouring Process: Concentricity Between Ring Groove And Bearing ≤0.01mm
Highlight:

low-noise slip ring for broadcast equipment

,

high speed slip ring with warranty

,

slip ring for surveillance cameras
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP040028-G05
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Low-noise Slip Rings for Broadcast Equipment and Surveillance Cameras
Our low-noise slip rings minimize interference in broadcast equipment and surveillance cameras, delivering crystal-clear video and audio signals while maintaining stable power and data transfer even in extreme moisture conditions.
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 0
Key Specifications
Attribute Value
Mirror Processing Technology Contact surface finish Ra0.02 for reliable electrical contact
Advanced Brush Filament Modulation Process Innovative brush design for extended lifespan
Precision Parts Manufacturing Process Dimensional tolerance <0.01mm for high-precision components
Electrical Strength ≥250VAC/50Hz/60s
Ingress Protection IP65 for protection against harsh environments
Rated Speed 2000-18000 Rpm
Continuous Operation Capability Operates continuously for 90 hours at 18000 rpm
Integrated Pouring Process Concentricity between ring groove and bearing ≤0.01mm
Technical Parameters
Parameter Specification
Core Friction Pair Technology Gold-gold contact technology for low-voltage weak current signals
Working Loops 12-20-28 Channels Are Optional
High-Speed Operation 18000 rpm without cooling system
Working Life 100 Million Revolutions
Rated Voltage/current 80VDC/1A
Key Features
  • Product Name: High Speed Slip Ring (Model SP040028-G05)
  • Gold-gold contact for superior low-voltage signal transmission
  • IP65 rated protection against dust and water ingress
  • Precision manufacturing with dimensional tolerance <0.01mm
  • Extended working life of 100 million revolutions
  • No cooling system required at 18000 rpm operation
Industrial Applications
  • Industrial automation systems and robotics
  • Precision machinery and wind turbines
  • Marine equipment and radar systems
  • Data transmission and communication systems
Product Images

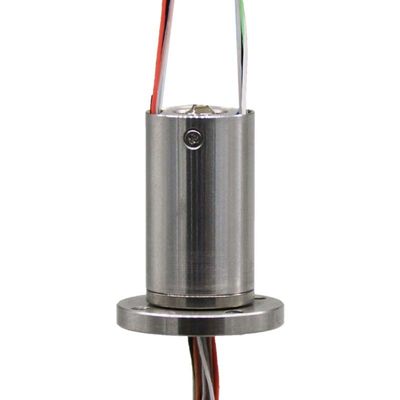

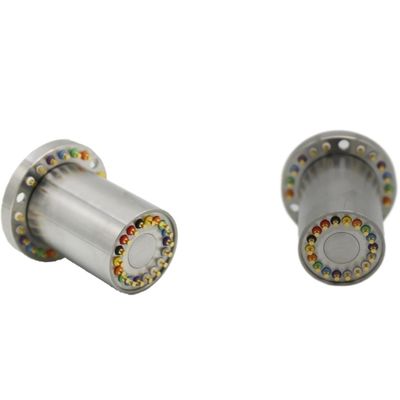

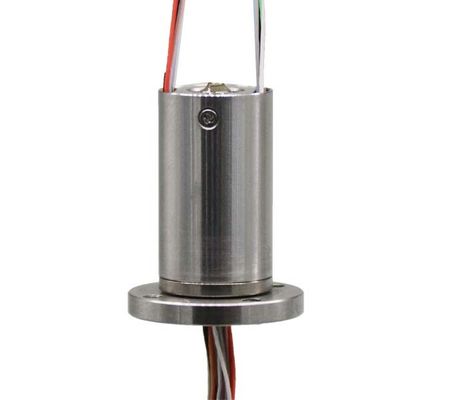

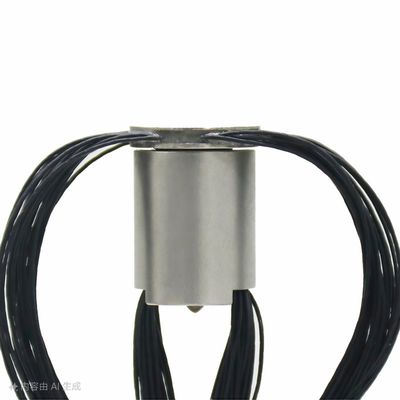

Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 1
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 2
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 3
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 4
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 5
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 6
Low-noise Slip Rings Minimize Interference In Broadcast Equipment And Surveillance Cameras, Delivering Crystal-clear Video And Audio Signals 7
Support and Services
  • Expert troubleshooting assistance
  • Installation guidance and support
  • Maintenance recommendations
  • Warranty services for eligible products
Packing and Shipping
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
Frequently Asked Questions
What is the brand name of this high-speed slip ring?
The brand name is SPR-ing.
What is the model number?
Model SP040028-G05.
Where is it manufactured?
Shenzhen, China.
What is the minimum order quantity?
1 piece.
What payment methods are accepted?
L/C and T/T.
