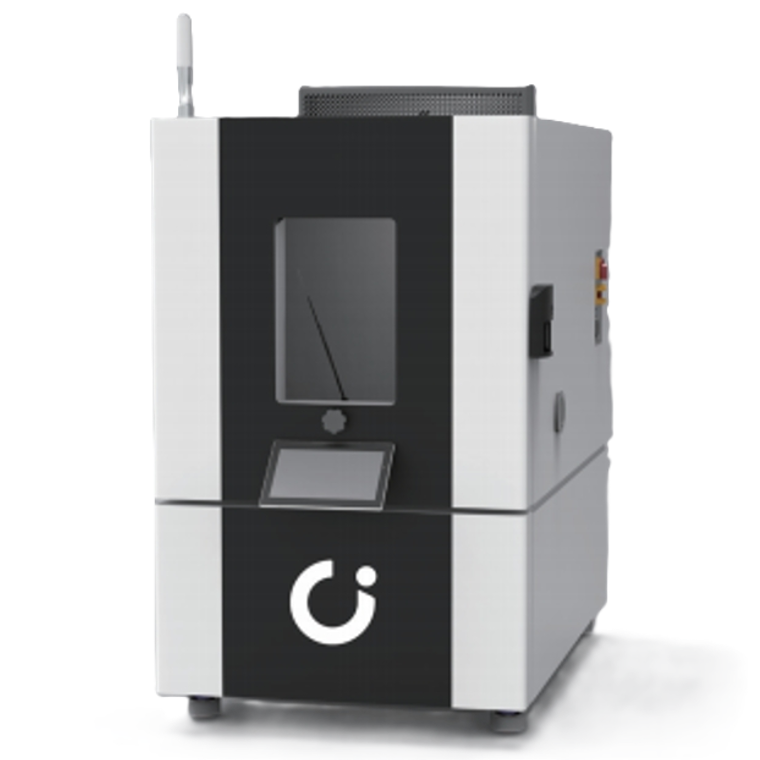

Name: High And Low Temperature Damp Heat Test Chamber With Touch Screen
Brand: Shenzhen SPRing Technology Co.,Ltd
SKU: JC330
Price: 32,500.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Nominal Internal Volume (L): 330~2000

Temperature Range: -70~220℃

Heating Speed: 3~6℃/min

Cooling Speed: 2~3.5℃/min

Thermal Compensation Capability: 1500~3000W

Cooling Method: Air/water Cooled (optional)

Power Supply Mode: AC380V±10% 50Hz 3/N/PE

Maximum Power: 15.5kw

Maximum Current: 30A

Highlight:

touch screen temperature test chamber

high low temperature damp heat chamber

damp heat test chamber with warranty

Basic Infomation

Place of Origin: Shenzhen

Brand Name: SPR-ing

Certification: GB2423.1、 GB2423.2、 GJB150.3、GJB150.4、GB11158、GB10589

Model Number: JC330

Payment & Shipping Terms

Packaging Details: Wooden carton

Delivery Time: 1~3 weeks

Payment Terms: T/T

Supply Ability: 20/month

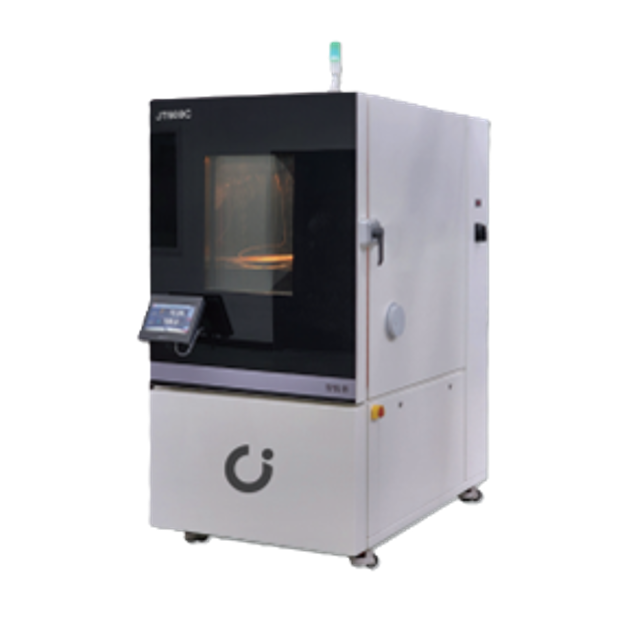

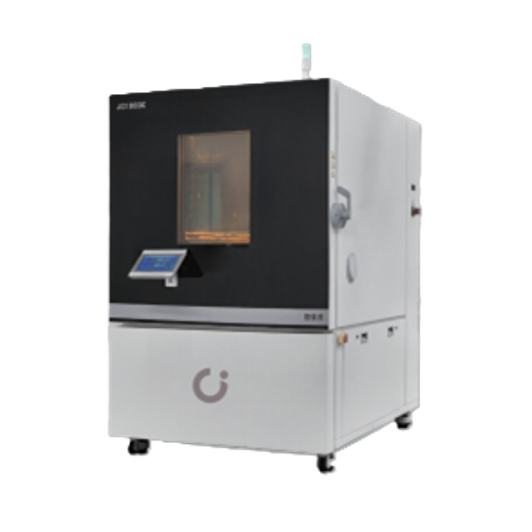

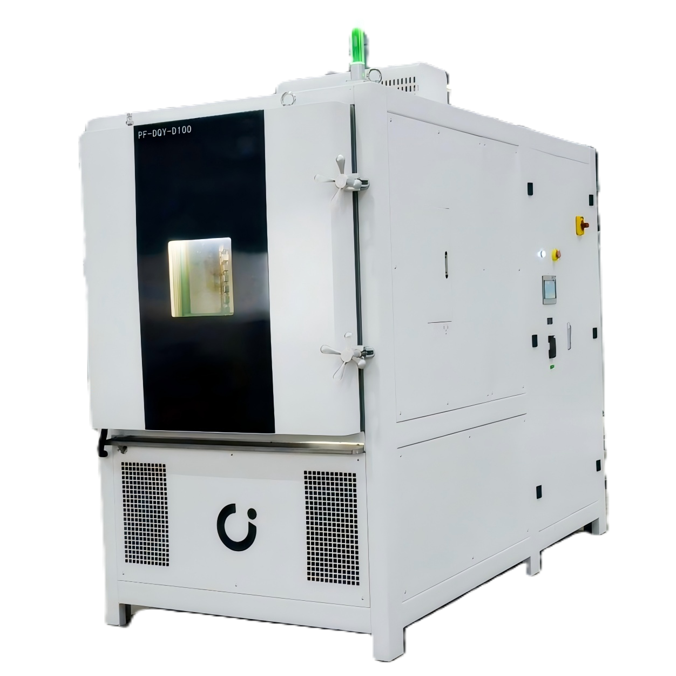

Gallery

High And Low Temperature Damp Heat Test Chamber With Touch Screen

Product Description

High And Low Temperature Damp Heat Test Chamber With Touch Screen

Temperature and humidity series 330-Chamber volume in L C-Minimum temperature -70°

Product Characteristics

10-inch color capacitive touch screen for enhanced user experience and operational convenience
Autonomous intelligent control logic system for precise temperature and humidity curve control with wide range capability
SUS304 mirror stainless steel inner container with excellent corrosion resistance and easy cleaning
Unique air circulation system minimizes water consumption in hot/humid conditions (without water recycling)
Advanced energy-saving design with intelligent control system and special air circulation for optimal energy efficiency

Technical Specifications

Model	JT330(C)	JT610(C)	JT1000(C)	JT1500(C)	JT2000(C)
Nominal internal volume (L)	330L	610L	1000L	1500L	2000L
Internal dimensions (mm)
D	760	795	960	1470	1670
W	585	800	1100	1100	1100
H	750	950	950	950	1100
External dimensions (mm)
D	1820	1850	2000	2525	2700
W	880	1100	1450	1450	1430
H	1950	2230	2230	2230	2400
Performance parameters
Minimum temperature (℃)	Minimum temperature of tail band C -70℃/minimum temperature of no C -40℃
Maximum temperature (℃)	+180°C (can be up to 220°C according to user requirements)
Temperature fluctuation (℃)	±0.1℃~±0.5℃
Temperature uniformity (℃)	≦2℃(≤150℃)
Temperature deviation (℃)	≦±2℃
Heating rate (℃/min)	4.0	6.0	4.0	4.0	3.0
Cooling rate (℃/min)	3.5	2.6	2.8	2.5	2.0
Thermal compensation capability	1500~3000W
Cooling method	Air/water cooled (optional)
Power supply mode	AC380V±10% 50Hz 3/N/PE
Maximum power (KW)	4.8	8.5	11.5	11.5	15.5
Maximum current (A)	12.3	14.8	22	22	30
Noise level (Db(A))	65	65	68	68	70
Equipment weight (KG)	480	615	870	1000	1250

Test Method & Compliance

All performance indexes are measured under no-load conditions at ambient temperature of 20±2℃ (according to GB/T 5170.2-2017). Temperature and humidity performance test follows standard IEC 60068 3-5, with sensor placed at the air outlet of the air handling unit.

Complies with: GB2423.1, GB2423.2, GJB150.3, GJB150.4, GB11158, GB10589
