Name: Three Comprehensive Environmental Test Chamber
Brand: Shenzhen SPRing Technology Co.,Ltd
SKU: JT/JC 490C（L） -10ES
Price: 32,500.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Nominal Internal Volume (L): 330~2000

Temperature Range: -70~220℃

Heating Speed: 3~6℃/min

Cooling Speed: 2~3.5℃/min

Thermal Compensation Capability: 1500~3000W

Cooling Method: Air/water Cooled (optional)

Power Supply Mode: AC380V±10% 50Hz 3/N/PE

Maximum Power: 15.5kw

Maximum Current: 30A

Highlight:

three zone environmental test chamber

temperature test chamber with warranty

comprehensive environmental testing equipment

Basic Infomation

Place of Origin: Shenzhen

Brand Name: SPR-ing

Certification: GB2423.1、 GB2423.2、 GJB150.3、GJB150.4、GB11158、GB10589

Model Number: JT/JC 490C（L） -10ES

Payment & Shipping Terms

Packaging Details: Wooden carton

Delivery Time: 1~3 weeks

Payment Terms: T/T

Supply Ability: 20/month

Gallery

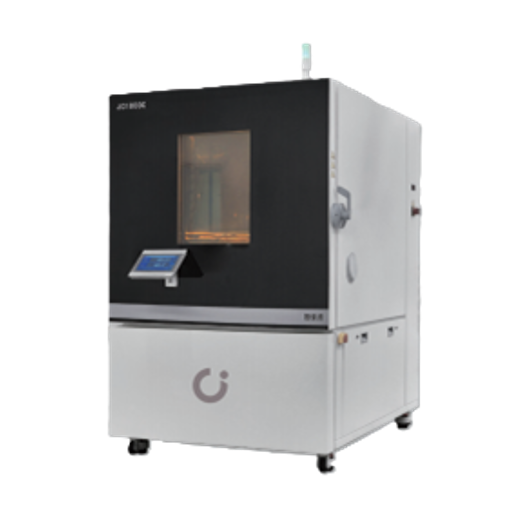

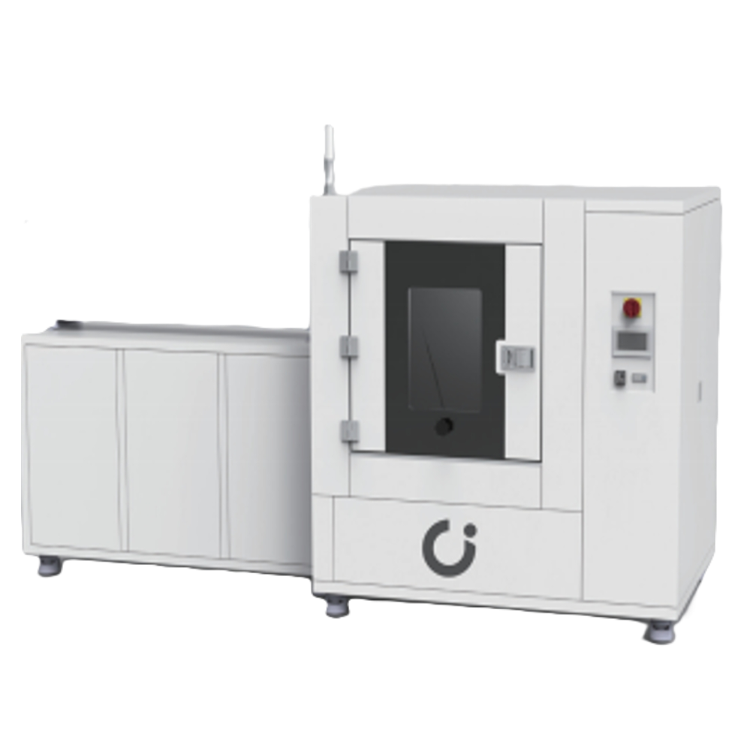

Three Comprehensive Environmental Test Chamber

Product Description

Three Comprehensive Environmental Test Chamber

The Three Comprehensive Environmental Test Chamber offers advanced testing capabilities with superior temperature control and energy efficiency.

Product Characteristics

Advanced air duct design utilizing CFD flow field simulation technology for optimal temperature uniformity and minimized frosting
Energy-saving technology with PWM cold control mode, reducing energy consumption by over 40% in constant operation
Multiple structural configurations available: self-lifting, scissors-fork hydraulic table, and gantry (for larger units)

Air Flow Field Diagram in the Box

Unique Features

10-inch color capacitive touch screen for intuitive operation
Autonomous intelligent control logic system for precise wide-range temperature control
SUS304 mirror stainless steel inner container with superior corrosion resistance
Advanced energy-saving design with intelligent control system and specialized air circulation

Technical Specifications

All performance indexes are measured under no-load conditions at ambient temperature of 20±2℃ (according to GB/T 5170.2-2017). Temperature and humidity performance test follows standard IEC 60068 3-5, with sensor placed at the air outlet of the air handling unit.

Compliance Standards

GB2423.1, GB2423.2, GJB150.3, GJB150.4, GB11158, GB10589
