Name: Walk-in High And Low Temperature Test Chamber
Brand: Shenzhen SPRing Technology Co.,Ltd
SKU: TCP8-40
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Nominal Internal Volume (L): 330~2000

Temperature Range: -70~220℃

Heating Speed: 3~6℃/min

Cooling Speed: 2~3.5℃/min

Thermal Compensation Capability: 1500~3000W

Cooling Method: Air/water Cooled (optional)

Power Supply Mode: AC380V±10% 50Hz 3/N/PE

Maximum Power: 15.5kw

Maximum Current: 30A

Highlight:

walk-in temperature test chamber

high low temperature chamber

industrial temperature testing chamber

Basic Infomation

Place of Origin: Shenzhen

Brand Name: SPR-ing

Certification: GB2423.1、 GB2423.2、 GJB150.3、GJB150.4、GB11158、GB10589

Model Number: TCP8-40

Payment & Shipping Terms

Packaging Details: Wooden carton

Delivery Time: 1~3 weeks

Payment Terms: T/T

Supply Ability: 20/month

Gallery

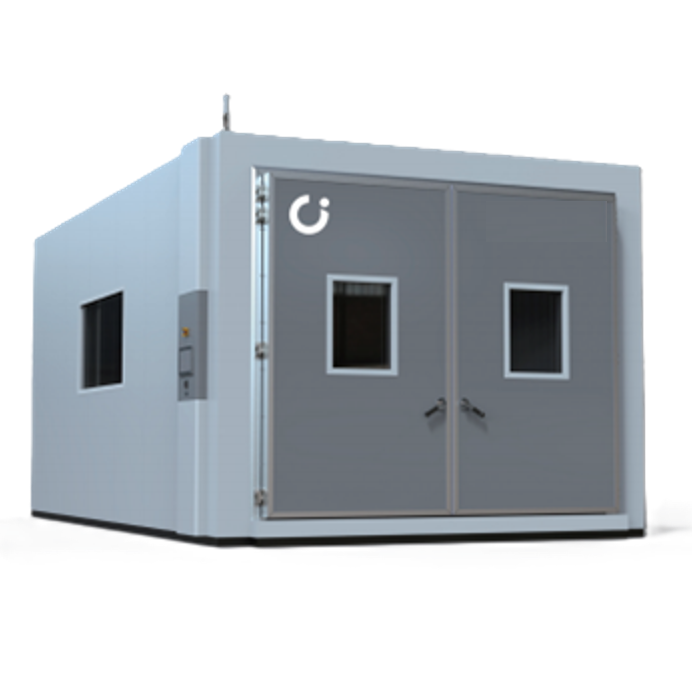

Walk-in High And Low Temperature Test Chamber

Product Description

Walk-in High And Low Temperature Test Chamber

Product Characteristics

Walk-in design
Provide a larger test space that can accommodate large equipment or multiple samples
Real-time testing, applicable to batch testing requirements.
It is convenient for the user to enter the equipment for operation or observation.
High precision control
Adopt advanced temperature and humidity control system to ensure the stability and uniformity of temperature and humidity.
High-precision sensors provide real-time monitoring to ensure the accuracy of test data.
Versatility
Various test modes such as high and low temperature, damp and hot circulation, constant temperature and humidity can be carried out to meet different test requirements.
It has the ability of rapid temperature rise and drop and humidity adjustment to improve the test efficiency.
Security
Equipped with multiple safety protection measures, such as over-temperature, over-humidity, short circuit and other alarm functions
Be able to ensure the safety of equipment and operators.
Use environmentally friendly materials and designs to meet relevant environmental standards.
Durability
High-quality materials and structural design, with good corrosion resistance and durability, suitable for long-term use.
The maintenance is simple and the use cost is reduced.

Areas of Application

Automotive industry
Vehicle and parts test: The walk-in environmental chamber is used to test the performance of the vehicle under extreme weather conditions such as high temperature, low temperature and humidity, so as to ensure the reliability and durability of the vehicle body, engine, electronic system and other parts in harsh environments.
Aerospace
Environmental adaptability test of aerospace vehicles: evaluate the performance of aircraft, satellites, and spacecraft under extreme conditions such as high temperature, low temperature, low atmospheric pressure, and hot and humid conditions, so as to ensure that they can operate normally in different atmospheric and space environments.
Electronic and electrical equipment
Environmental testing of electrical and electronic equipment: walk-in environmental chamber is used to evaluate the reliability of household appliances, industrial equipment, communication equipment, etc. In high humidity, temperature change, salt fog and other environments;
Component durability test: test the performance of electronic components, chips, circuit boards in the environment of temperature and humidity changes, vibration, etc.
Construction and engineering materials
Weather resistance test of building materials: test the anti-aging performance of building materials such as concrete, steel, glass, etc. In high temperature, low temperature and humidity changes;
Testing of coatings and anticorrosive materials: evaluate the corrosion resistance of coatings and anticorrosive materials in hot and humid, salt spray and other harsh environments;
Industry and National Defense
Environmental adaptability of equipment: used to test the operational performance of equipment (such as weapon systems, vehicles, communication equipment) under extreme weather conditions;
Battlefield simulation test: The walk-in environmental box can simulate extreme battlefield environment and test the durability of equipment under vibration, impact, corrosion and other conditions.
Energy and Power Industry
New energy equipment test: used to test the working performance of solar cells and wind power generation equipment under extreme weather conditions;
Medical devices
Environmental adaptability of medical equipment: walk-in environmental chamber is used to test the reliability of medical equipment in high temperature, low temperature and humidity change;
Biomaterial testing: assess the aging and performance changes of medical implants, prostheses and other biomaterials in the simulated external environment of the human body;
Food and pharmaceutical industry
Weatherability test of packaging materials: evaluate the stability of food and packaging under high humidity, high temperature or low temperature conditions;
Shelf life test: quickly evaluate the shelf life of food and medicine by simulating various storage conditions;
Marine engineering
Anti-corrosion test of offshore equipment: evaluate the corrosion resistance and anti-aging performance of offshore platforms, hulls, submarine cables and other equipment in the marine environment;
Testing of marine engineering materials: The walk-in environmental chamber can simulate the high humidity and salt fog in the ocean to help test the durability of building materials used in ports and offshore facilities;
Scientific research and academic research
Research and development of new materials: provide a test platform to help researchers develop new anti-aging and corrosion-resistant materials;
Environmental impact studies: Simulating the impact of climate change on materials and equipment

Compliance Standards

GB2423.1

GB2423.2

GJB150.3

GJB150.4

GB11158

GB10589
