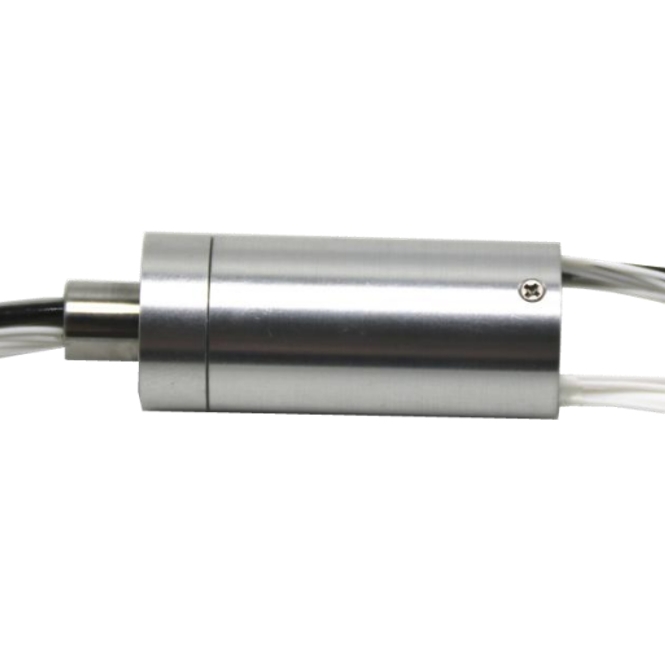

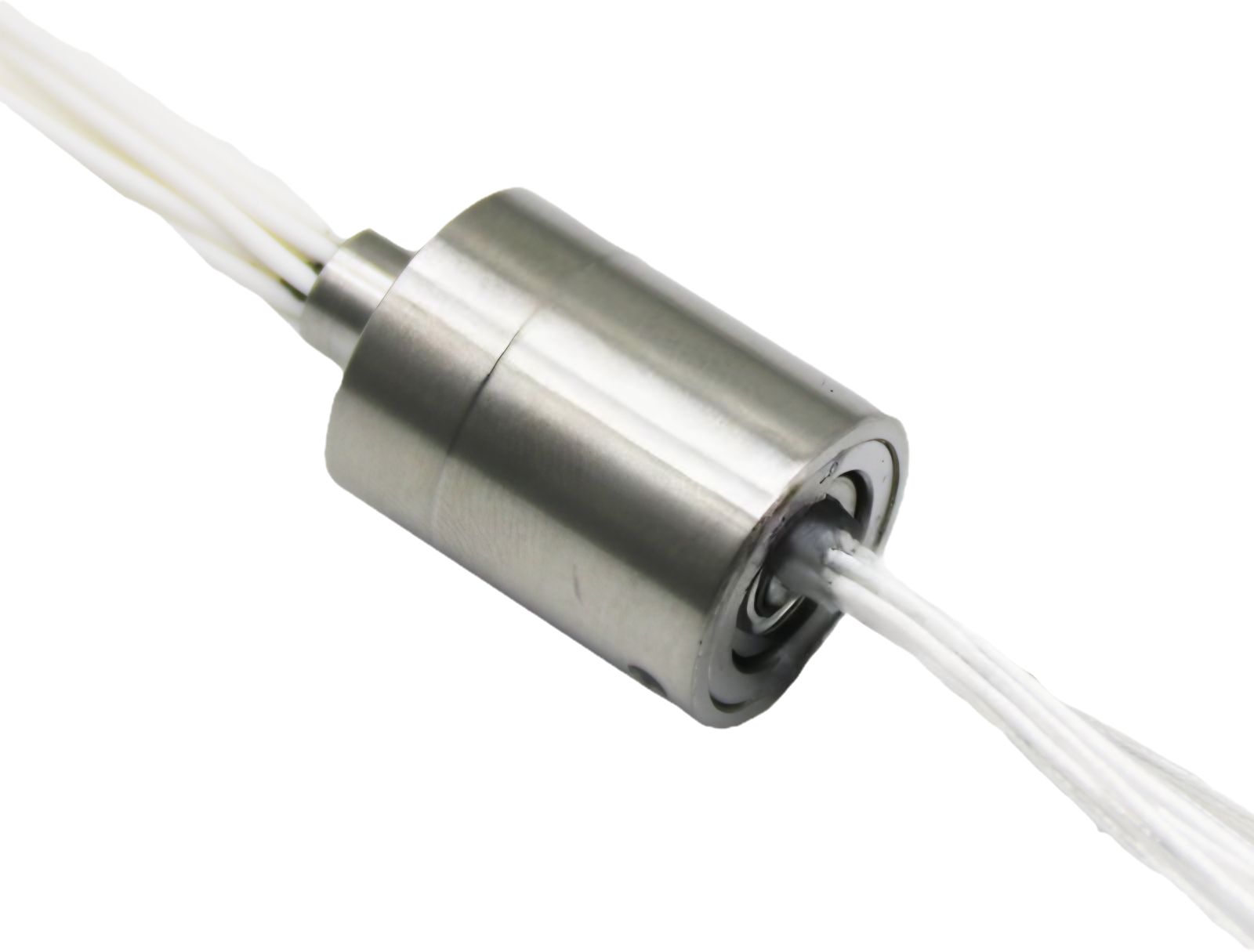

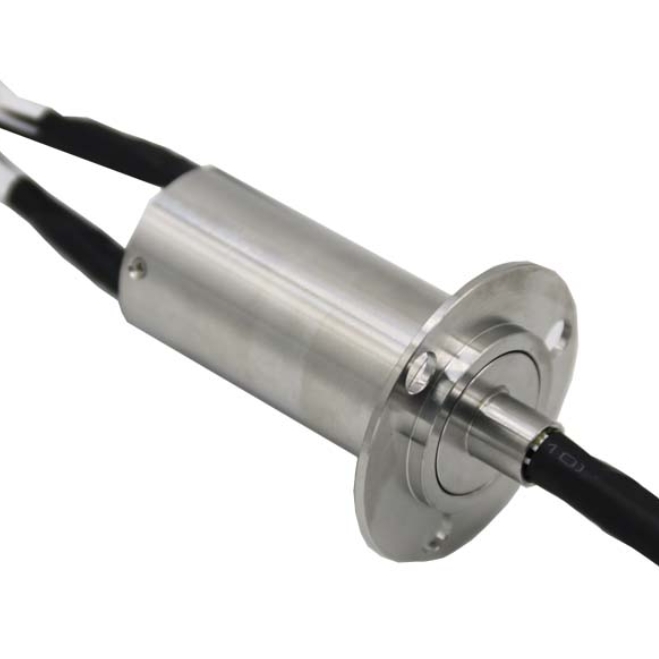

Electric Through Hole Slip Ring 56 Channel for Industrial Equipment

Engineered for maximum reliability in industrial equipment, this slip ring features gold-gold contacts and a brush design with near-zero pressure to extend service life by one-third. Precision machining and mirror-finished contacts ensure high stability and minimal dynamic resistance variation (≤10mΩ). The compact, robust stainless steel construction withstands extreme temperatures from -40°C to 85°C and harsh operating conditions. Rated for 0-240VDC with maximum 2A current and speeds up to 250 rpm.

• 36-ring: 36-way 2A | 4-way 5A, 28-way 2A | 4-way 10A, 20-way 2A
• 56-ring: 56-way 2A | 4-way 5A, 48-way 2A

• Gold-gold contact, high conductivity, good thermal conductivity, small temperature coefficient of resistance (resistance to vulcanization, oxidation, corrosive gases, etc.), a certain hardness, good wear resistance (good fusion welding resistance, resistance to arc corrosion and burns).
• Integrated pouring process: ensure that the concentricity of the ring groove and the bearing is ≤ 0.01 mm.
• Mirror processing technology: ensure that the contact surface finish of the slip ring can reach Ra0.02, and the contact is more reliable.
• Precision component manufacturing process: dimensional tolerances＜0.01mm, High precision, more stable contact.
• The service life of the slip ring is prolonged by 1/3 due to the brush design and debugging process close to zero pressure.
• Small size, compact structure, can meet the user's space constraints.
• The slip ring is made of integral stainless steel metal structure, which is suitable for extremely harsh environment.

• Expert troubleshooting assistance
• Installation guidance and support
• Maintenance recommendations
• Warranty services for eligible products

Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
