Industrial Slip Ring for Power Signal Data Transmission 360 Degree Rotation

1
MOQ
200~800 USD
Price
Industrial Slip Ring for Power Signal Data Transmission 360 Degree Rotation
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 36/56
Rated Speed: 0–250 Rpm
Lifespan: 10 Million Revolutions
Insulation Resistance:: 500MΩ/500VDC
Dynamic Resistance Change: ≤10mΩ
Dielectric Strength: 250VAC, 60s
Highlight:

Industrial slip ring for power transmission

,

360 degree rotation slip ring

,

Conductive slip ring with data transmission
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP025
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Industrial Slip Ring for Power Signal Data Transmission 360 Degree Rotation
Our high-precision slip ring features gold-gold contacts for superior conductivity and excellent thermal performance. The integrated pouring and mirror-processing technology ensures contact surface roughness of Ra0.02 and concentricity ≤0.01mm. With durable stainless steel housing, compact structure, and brush design close to zero pressure, it guarantees longer service life, reliable signal and power transmission under extreme environments.
Technical Specifications
Electrical Specifications
Design loop 36, 56
Insulation resistance 500MΩ/500V/DC
Rated voltage/current 0-240VDC / Max 2A
Dielectric strength 250VAC/50Hz/60s
Dynamic resistance change value ≤10mΩ
Mechanical Specifications
Rated speed 0-250 rpm
Working life 10 million rpm
Operating temperature -40℃ ~ 85℃
Contact material Gold-gold
Shell material 303 stainless steel
Boundary Dimensions with Flange
Number of rings Size A Size B
36 rings 66mm 52.40mm
56 rings 89mm 75.30mm
36-Ring Combination Modes
  • 36-way 2A
  • 4-way 5A, 28-way 2A
  • 4-way 10A, 20-way 2A
56-Ring Combination Modes
  • 56-way 2A
  • 4-way 5A, 48-way 2A

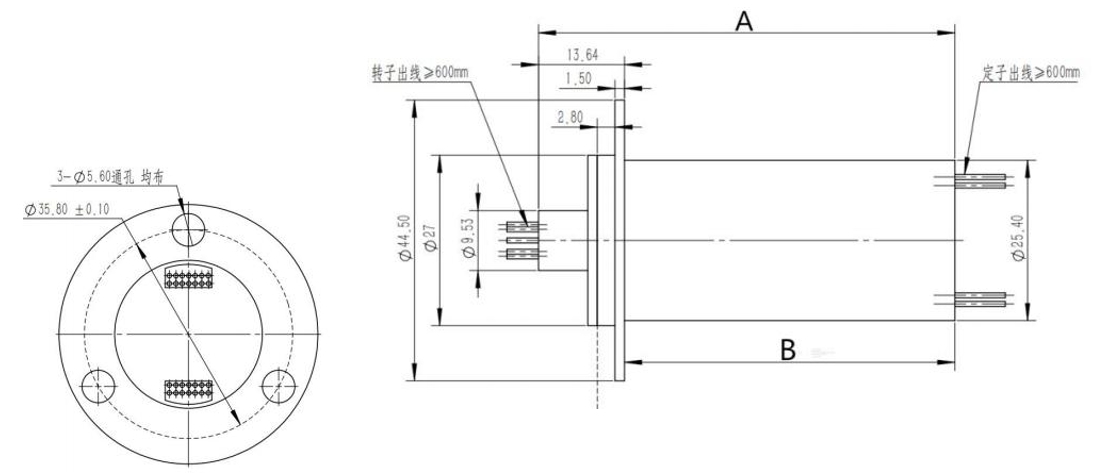

Outline Drawing

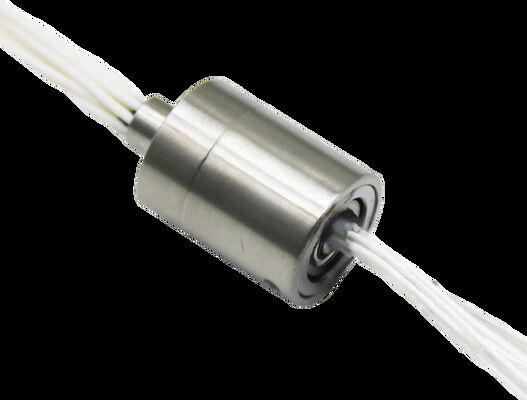

Industrial Slip Ring for Power Signal Data Transmission 360 Degree Rotation 0
Technical Advantages
  • Gold-gold contact: High conductivity, excellent thermal performance, small temperature coefficient of resistance (resistant to vulcanization, oxidation, corrosive gases), optimal hardness, superior wear resistance (excellent fusion welding resistance, arc corrosion and burn resistance)
  • Integrated pouring process: Ensures ring groove and bearing concentricity ≤ 0.01 mm
  • Mirror processing technology: Achieves contact surface finish of Ra0.02 for more reliable contact
  • Precision component manufacturing: Dimensional tolerances < 0.01mm for high precision and stable contact
  • Extended service life: Brush design and debugging process close to zero pressure increases lifespan by 1/3
  • Compact design: Small size and compact structure to meet space constraints
  • Robust construction: Integral stainless steel metal structure suitable for extremely harsh environments
Support and Services
  • Expert troubleshooting assistance
  • Installation guidance and support
  • Maintenance recommendations
  • Warranty services for eligible products
Packing and Shipping
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
Frequently Asked Questions
What is the brand name of this high-speed slip ring?
The brand name is SPR-ing.
What is the model number?
Model SP040028-G05.
Where is it manufactured?
Shenzhen, China.
What is the minimum order quantity?
1 piece.
What payment methods are accepted?
L/C and T/T.
