Slip Ring for Radar and Antenna Systems IP65 Multi Channel Power and Signal Transmission

1
MOQ
200-800USD
Price
Slip Ring for Radar and Antenna Systems IP65 Multi Channel Power and Signal Transmission
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 8
Rated Speed: 0-10000 Rpm
Insulation Resistance: 220MΩ/250V/DC
Current: 240VDC/1A
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change Value: ≤10mΩ
Highlight:

Slip ring for radar systems IP65

,

Multi channel slip ring power transmission

,

Mini slip ring antenna signal transmission
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP030008
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

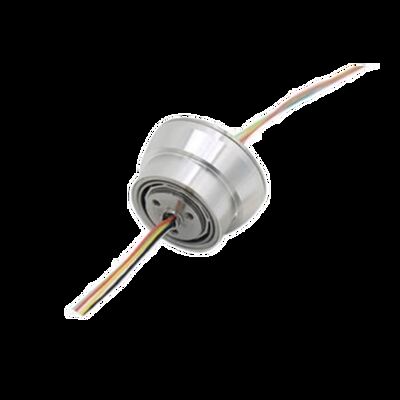

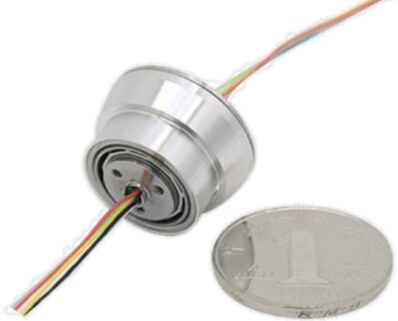

SP030008 Mini Slip Ring for Radar and Antenna Systems

The SP030008 mini slip ring delivers high-speed, high-precision performance for industrial and laboratory testing platforms. With 8 circuits capable of 1A per channel and rated voltage of 240VDC, it operates at speeds up to 10,000 RPM. The aluminum alloy shell and gold-gold contacts ensure exceptional durability, low resistance, and a lifespan of up to 100 million revolutions. Ideal for strain gauge and thermocouple signal acquisition applications.

Technical Specifications
Electrical Specifications
Parameter Specification
Design Loop 8
Insulation Resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10,000 RPM
Working Life 100 million cycles
Operating Temperature -40℃ to 80℃
Operating Humidity 0-80% RH
Contact Material Gold-gold
Shell Material Aluminum alloy

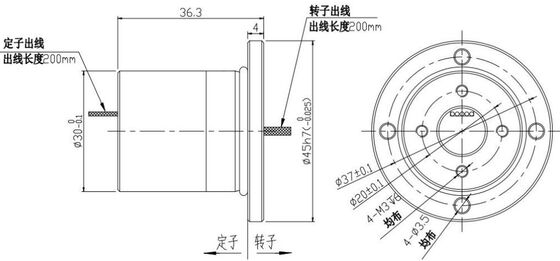

Outline Drawing
Slip Ring for Radar and Antenna Systems IP65 Multi Channel Power and Signal Transmission 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
High-Speed Capability
Operates up to 10,000 RPM for demanding testing environments
Ultra-Long Life
Gold-gold contact with advanced friction pair technology ensures 100 million cycles
Precision Manufacturing
Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
Compact and Lightweight
Small size meets tight installation requirements
Stable Signal Transmission
Low dynamic resistance ≤10mΩ ensures accurate measurements
Customizable
Wire length, circuit count, and other parameters can be tailored to specific requirements
