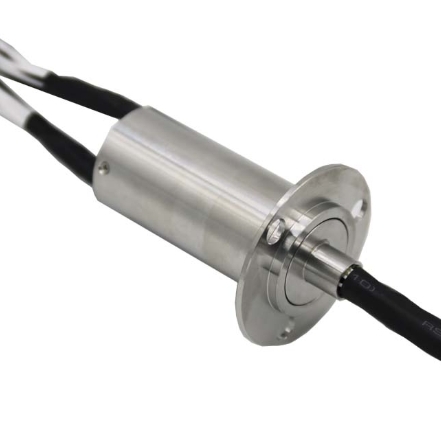

Long Life High-Speed Slip Ring Factory 500VDC 60 Channels OEM Supply

The SP056060 high-speed slip ring features 60 circuits, gold-gold contacts, and operates reliably at over 15,000 RPM. With a long service life of 50 million+ revolutions, it ensures stable power and signal transmission in demanding environments. Ideal for aerospace testing, high-speed rail monitoring, wind tunnel experiments, and industrial R&D platforms. Factory-direct supply with OEM and customization options.

• High-speed testing platforms for aircraft engines
• Automotive wheel hub performance and drivetrain testing
• High-speed rail component testing
• Strain gauge and thermocouple signal acquisition
• Robotics and UAV payloads
• Laboratory and industrial precision measurement systems

• Slip ring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life
• Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
• Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
• Precision component manufacturing process: dimensional tolerance < 0.01mm, high precision, and more stable performance
• Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
• Small in size and compact in structure, it can meet the space constraints of users
• The slip ring adopts a solid aluminum alloy metal structure with strong sealing performance, suitable for extremely harsh environments
• High speed, this slip ring has been tested and verified to have a speed of up to 15000 revolutions per minute
• Long lifespan, customizable with a lifespan of 150 million revolutions per minute
