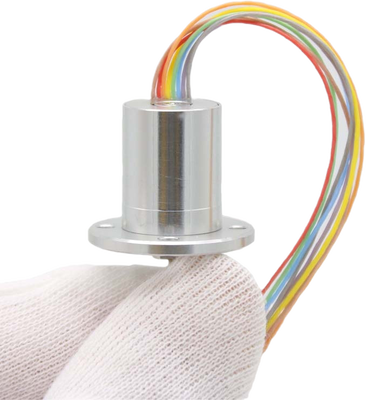

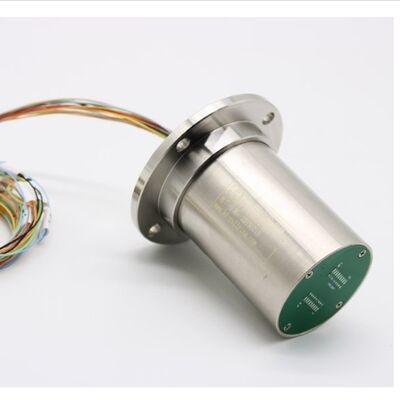

High-Performance Long Life Slip Ring 15000 RPM 500VDC for Electric Motor

1
MOQ
200-800USD
Price
High-Performance Long Life Slip Ring 15000 RPM 500VDC for Electric Motor
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 60
Insulation Resistance: 500MΩ/500V/DC
Rated Voltage/current: 500VDC/1A
Dielectric Strength: ≥500VAC/50Hz/60s
Dynamic Resistance Change Value: ≤50mΩ
Rated Speed: >15000 Rpm
Working Life: 50 Million Circle
Operating Temperature: -10℃ ~35℃
Highlight:

high-performance slip ring 15000 RPM

,

long life slip ring 500VDC

,

electric motor slip ring high-speed
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP056060-080-G15
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Product Overview
High-performance long life slip ring with 60 circuits and gold contacts. Supports 15,000+ RPM operation and provides reliable performance in aerospace testing, wind tunnel experiments, industrial R&D, and rail transit systems.
Technical Specifications
Electrical Specifications
Design Loop 60
Insulation Resistance 500MΩ/500V/DC
Rated Voltage/Current 500VDC/1A
Dielectric Strength ≥500VAC/50Hz/60s
Dynamic Resistance Change Value ≤50mΩ
Mechanical Specifications
Rated Speed >15,000 RPM
Working Life 50 Million Cycles
Operating Temperature -10℃ to 35℃
Contact Material Gold-Gold
Shell Material Aluminum Alloy
Humidity 20% to 80%
Outline Drawing
High-Performance Long Life Slip Ring 15000 RPM 500VDC for Electric Motor 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Technical Advantages
  • Advanced friction pair technology with gold metal contacts for ultra-long service life
  • Integrated casting process ensures concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology provides contact surface smoothness of Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance < 0.01mm for high precision and stable performance
  • Advanced brush wire modulation technology with near-zero pressure design extends slip ring life by 1/3
  • Compact size and structure to meet space constraints
  • Solid aluminum alloy metal structure with strong sealing performance for harsh environments
  • High-speed capability tested and verified up to 15,000 revolutions per minute
  • Long lifespan with customizable options up to 150 million revolutions
