SP035018-A 5000 RPM High-Speed Slip Ring with 18 Circuits and Gold-Gold Contact

The SP035018-A terminal high-speed slip ring is designed for stable power and signal transmission in high-speed rotating systems. With a rated speed of 5000 RPM and 18 circuits, it supports continuous rotation with reliable electrical performance.

Its lead-wire-free terminal structure with color-coded interfaces on both rotor and stator simplifies installation and reduces wiring complexity. Gold-gold contact technology ensures low electrical noise, minimal wear, and long service life.

This slip ring is suitable for automation equipment, rotary platforms, and industrial testing systems. An optional speed measuring device is available for monitoring applications.

Technical parameters

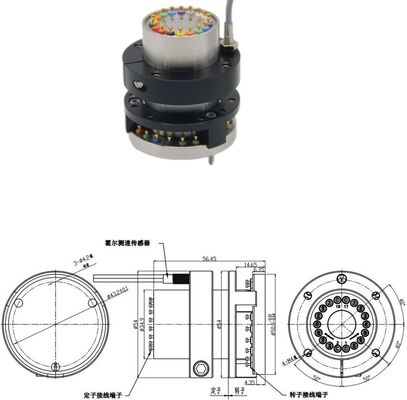

Outline Drawing

Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments.

ü Color code recognition interface: easy to install
