Factory Direct Through Bore Slip Ring 18 Channel with Fast Delivery for Robotic Arm

Factory Direct Through Bore Slip Ring - 18 Channel with Fast Delivery for Robotic Arm

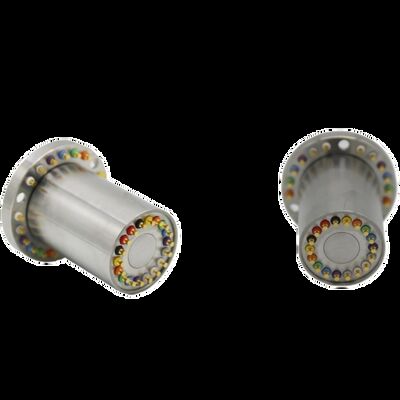

The SP035018-A is a compact terminal-type high-speed slip ring engineered for applications requiring clean wiring and easy installation. Operating at speeds up to 5000 RPM, it supports 18 channels for power and signal transmission. The stainless steel housing provides exceptional durability and mechanical stability, while gold-gold contacts ensure consistent electrical performance over a working life of 10 million revolutions. This model is ideal for automation systems, rotating machinery, and testing equipment where reliable high-speed operation is essential.

Technical Specifications

Outline Drawing

Technical Advantages

• Core friction pair technology with gold metal contacts ensures ultra-long service life
• Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable performance
• Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
• Advanced brush wire modulation technology with near-zero pressure design extends slip ring life by 1/3
• Compact size and structure designed to meet space constraints
• Stainless steel construction provides durability and strong sealing for harsh environments
• Color-coded recognition interface for easy installation
