Custom Industrial Slip Ring Supplier with 18 Circuits 1A IP65 Waterproof for Industrial Machinery

1 piece
MOQ
200~800 USD
Price
Custom Industrial Slip Ring Supplier with 18 Circuits 1A IP65 Waterproof for Industrial Machinery
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 5000 Rpm
Number Of Circuits: 18
Life Expectancy: 10 Million Revolutions
Application: Wind Turbines, Robotics, Medical Equipment, Radar Systems
Operating Temperature: -40℃ ~ 80℃
Mounting Method: Flange Mounting
Contact Material: Gold-gold
Dielectric Strength: ≥300VAC/50Hz/60s
Insulation Resistance: 250MΩ/250V/DC
IP Grade: Ip51
Highlight:

industrial slip ring 18 circuits

,

waterproof slip ring IP65

,

conductive slip ring 1A
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Custom Industrial Slip Ring Supplier with 18 Circuits 1A IP65 Waterproof for Industrial Machinery
SP035018-A is a durable terminal high-speed slip ring engineered for demanding industrial applications. With a rated speed of 5000 RPM and a service life of 10 million revolutions, it delivers reliable performance in continuous operation environments. The stainless steel housing provides exceptional mechanical strength, while gold-gold contacts ensure stable electrical transmission during rotation. Commonly applied in automation systems, rotary platforms, and industrial testing environments.
Technical Specifications
Electrical Specifications
Design Loop 18
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 5000 rpm
Working Life 10 million revolutions
Operating Temperature -40℃ ~ 80℃
Operating Humidity 0～80%RH
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.5N.cm
Weight ≤105g
IP Grade IP51

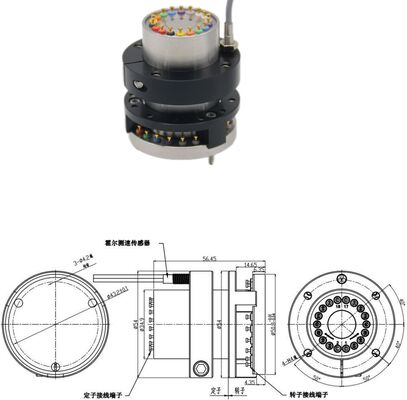

Outline Drawing
Custom Industrial Slip Ring Supplier with 18 Circuits 1A IP65 Waterproof for Industrial Machinery 0 Custom Industrial Slip Ring Supplier with 18 Circuits 1A IP65 Waterproof for Industrial Machinery 1
Technical Advantages
  • Core friction pair technology with gold metal contacts ensures ultra-long service life
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation technology with near-zero pressure design extends slip ring life by 1/3
  • Compact size and structure designed to meet user space constraints
  • Stainless steel construction provides durability and strong sealing for harsh environments
  • Color-coded recognition interface for easy installation and maintenance
