PTZ Surveillance Slip Ring Small Volume Waterproof Rotary Joint for CCTV Camera

1
MOQ
200-800USD
Price
PTZ Surveillance Slip Ring Small Volume Waterproof Rotary Joint for CCTV Camera
Features Gallery Product Description Chat Now
Features
Specifications
Contact Resistance: ≤10mΩ
Ip Protection Grade: IP51
Life Expectancy: 10 Million Revolutions
Housingmaterial: Stainless Steel
Designed Loop: 18
Insulation Resistance: ≥1000 MΩ At 500V DC
Rated Speed: 5000 Rpm
Operating Temperature: -40℃ ~ 80℃
Highlight:

PTZ surveillance slip ring waterproof

,

small volume rotary joint CCTV

,

conductive slip ring for camera
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
PTZ Surveillance Slip Ring Small Volume Waterproof Rotary Joint

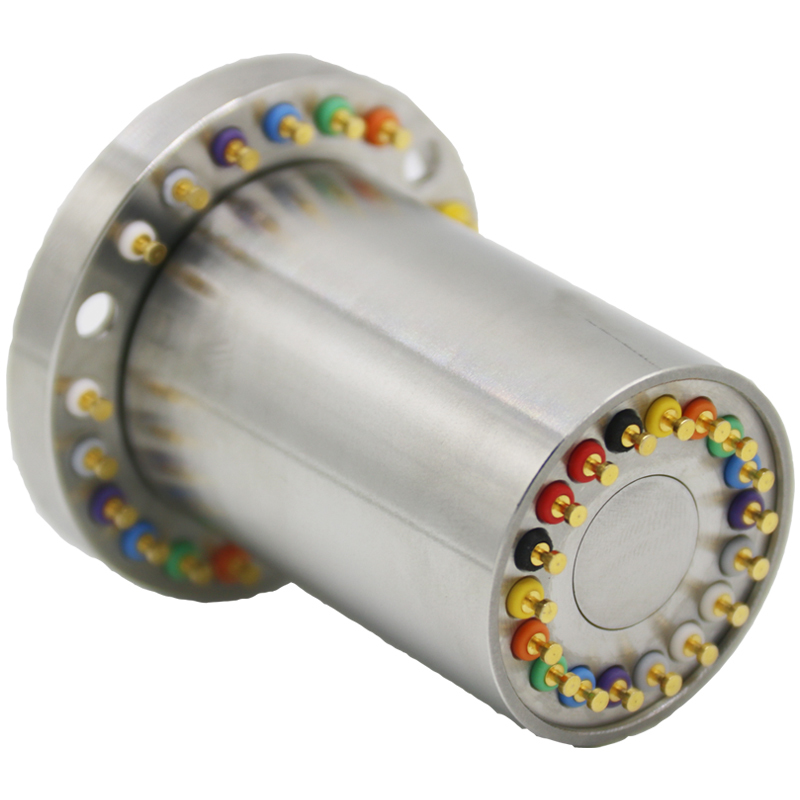

The SP035018-A terminal slip ring is a compact high-speed solution designed for CCTV camera applications requiring clean wiring and reliable electrical transmission. Supporting 18 channels and operating at speeds up to 5000 RPM, this slip ring delivers exceptional performance in demanding environments.
Featuring gold-gold contacts and a stainless steel shell, the slip ring ensures low noise operation and extended service life. The terminal structure eliminates lead wires, simplifying installation while reducing wiring errors. Ideal for automation equipment, motion systems, and industrial test platforms.
Technical Specifications
Electrical Specifications
Design Loop 18
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 5000 rpm
Working Life 10 million rotations
Operating Temperature -40℃ to 80℃
Operating Humidity 0-80% RH
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.5 N.cm
Weight ≤105g
IP Grade IP51
Outline Drawing
PTZ Surveillance Slip Ring Small Volume Waterproof Rotary Joint for CCTV Camera 0 PTZ Surveillance Slip Ring Small Volume Waterproof Rotary Joint for CCTV Camera 1
Technical Advantages
  • Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Technology: Near-zero pressure brush design extends slip ring life by 1/3
  • Compact Design: Small size and compact structure meets space-constrained applications
  • Stainless Steel Construction: Durable and sealed for harsh industrial environments
  • Color Code Recognition: Easy installation with clearly marked interfaces
