Capsule Miniature Slip Ring 18Channels Low Noise for CCTV PTZ Surveillance Camera

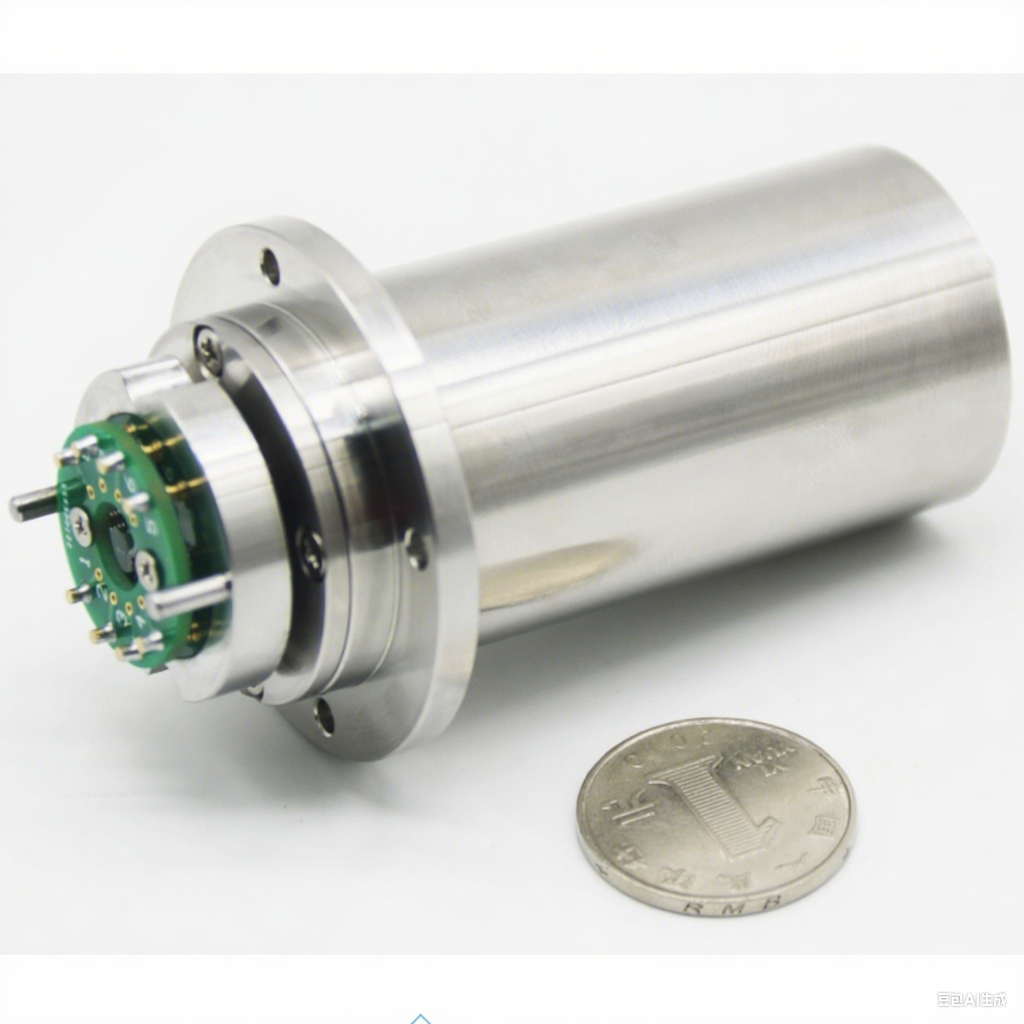

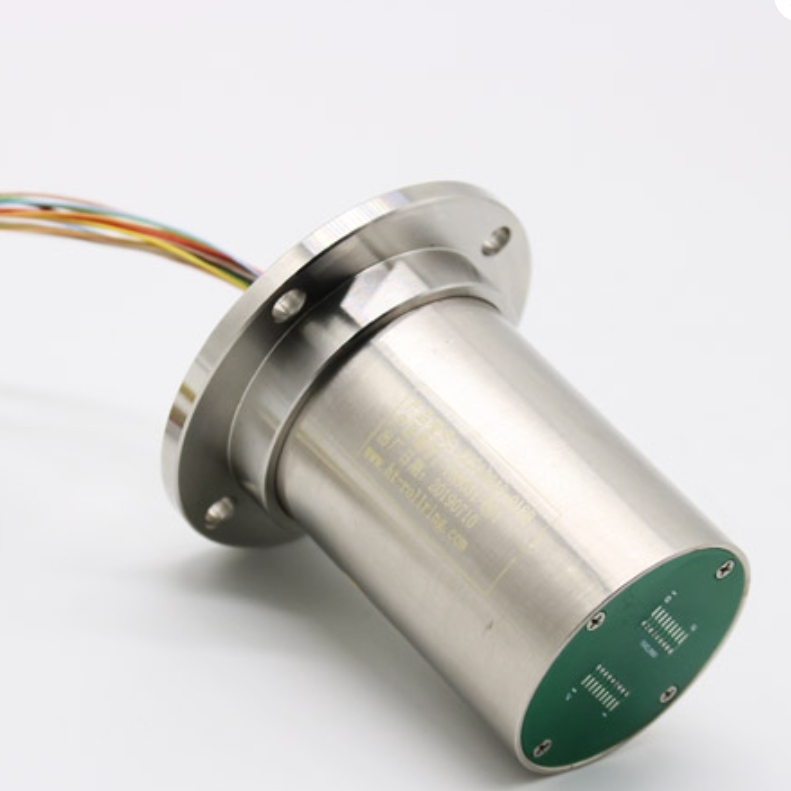

The SP035018-A is a compact and lightweight high-speed slip ring weighing ≤105 g. It operates at speeds up to 5000 RPM and supports 18 electrical circuits. The stainless steel housing and gold-gold contact materials provide durability and stable performance during continuous rotation. Ideal for space-limited automation systems and testing equipment.

Outline Drawing - Front View

Outline Drawing - Side View

• Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
• Integrated Casting Process: Concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for reliable contact
• Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
• Advanced Brush Wire Technology: Near-zero pressure brush design extends slip ring life by 1/3
• Compact Design: Small size and compact structure for space-constrained applications
• Stainless Steel Construction: Durable and sealed for harsh environments
• Color Code Recognition: Easy installation with color-coded interfaces
