High Speed 5000RPM Bore Through Bore Slip Ring Long Service Life 10 million RPM

1
MOQ
200-800USD
Price
High Speed 5000RPM Bore Through Bore Slip Ring Long Service Life 10 million RPM
Features Gallery Product Description Chat Now
Features
Specifications
Dielectric Strength: ≥300VAC/50Hz/60s
Current Rating: 1A
Operating Speed: 5000rpm
Mounting Method: Flange Mounting
Protection Level: IP51
Working Life: 10 Million Rpm
Number Of Circuits: 18
Operating Humidity: 0～80%RH
Highlight:

high speed 5000RPM slip ring

,

bore through slip ring long life

,

conductive slip ring 10 million RPM
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

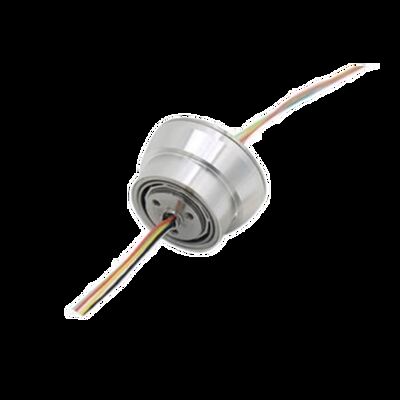

High Speed 5000RPM Bore Through Bore Slip Ring Long Service Life 10 million RPM
The SP035018-A high-speed terminal slip ring offers reliable performance for continuous rotation systems. Operating at 5000 RPM, it supports 18 circuits for efficient electrical transmission. The lead-wire-free terminal design simplifies installation, while gold-gold contacts ensure stable signal quality. This slip ring is ideal for industrial automation and rotating machinery.
Technical Specifications
Electrical Specifications
Design Loop 18
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 5000 rpm
Working Life 10 million circle
Operating Temperature -40℃ ~ 80℃
Operating Humidity 0～80%RH
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.5N.cm
Weight ≤105g
IP Grade IP51
Outline Drawing
High Speed 5000RPM Bore Through Bore Slip Ring Long Service Life 10 million RPM 0 High Speed 5000RPM Bore Through Bore Slip Ring Long Service Life 10 million RPM 1
Technical Advantages
Slip ring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life
Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
Precision component manufacturing process: dimensional tolerance < 0.01mm, axial displacement < 0.01mm, high precision, and more stable performance
Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
Small in size and compact in structure, it can meet the space constraints of users
Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments
Color code recognition interface: easy to install
