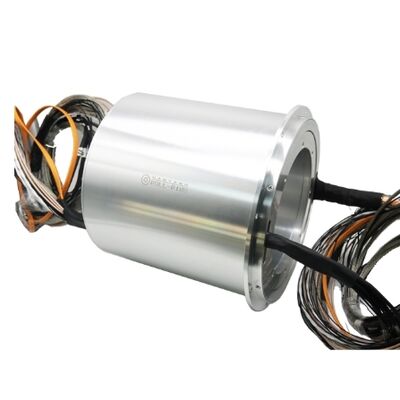

Rotary Electrical Slip Ring High Frequency Anti Interference Signal Power Slip Ring

1
MOQ
200-800USD
Price
Rotary Electrical Slip Ring High Frequency Anti Interference Signal Power Slip Ring
Features Gallery Product Description Chat Now
Features
Specifications
Dielectric Strength: ≥300VAC/50Hz/60s
Current Rating: 1A
Operating Speed: 5000rpm
Mounting Method: Flange Mounting
Protection Level: IP51
Working Life: 10 Million Rpm
Number Of Circuits: 18
Operating Humidity: 0～80%RH
Highlight:

high frequency rotary slip ring

,

anti interference electrical slip ring

,

conductive power slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Rotary Electrical Slip Ring High Frequency Anti Interference Signal Power Slip Ring

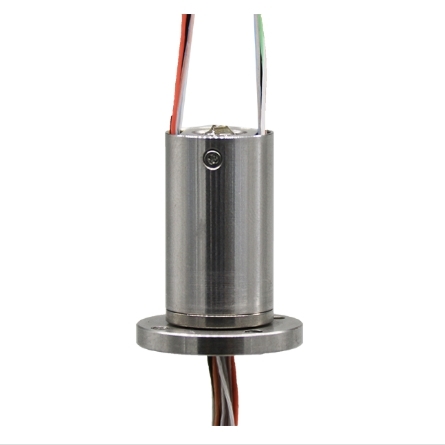

The SP035018-A is a precision-engineered terminal slip ring designed for compact high-speed applications. Its 18-circuit configuration ensures stable power and signal transmission at speeds up to 5000 RPM. Featuring gold-gold contact materials and a stainless steel shell, this slip ring delivers low wear and exceptional long-term reliability for automation systems and industrial testing platforms.
Technical Specifications
Electrical Specifications
Design Loop 18
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 5000 rpm
Working Life 10 million cycles
Operating Temperature -40℃ ~ 80℃
Operating Humidity 0～80%RH
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.5N.cm
Weight ≤105g
IP Grade IP51
Outline Drawing
Rotary Electrical Slip Ring High Frequency Anti Interference Signal Power Slip Ring 0
Rotary Electrical Slip Ring High Frequency Anti Interference Signal Power Slip Ring 1
Technical Advantages
  • Advanced friction pair technology with gold metal contacts ensures ultra-long service life
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable performance
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation technology with near-zero pressure design extends slip ring life by 1/3
  • Compact size and structure designed to meet space-constrained applications
  • Stainless steel construction provides durability and strong sealing for harsh environments
  • Color-coded interface recognition for easy installation and maintenance
