Name: Custom Through Bore Conductive Slip Ring High Reliability Micro Conductive Rotary Joint
Brand: Shenzhen SPRing Technology Co.,Ltd
SKU: SP035018-A
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Dielectric Strength: ≥300VAC/50Hz/60s

Current Rating: 1A

Operating Speed: 5000rpm

Mounting Method: Flange Mounting

Protection Level: IP51

Working Life: 10 Million Rpm

Number Of Circuits: 18

Operating Humidity: 0～80%RH

Highlight:

custom through bore slip ring

high reliability conductive rotary joint

micro conductive slip ring

Basic Infomation

Place of Origin: Shenzhen

Brand Name: SPR-ing

Model Number: SP035018-A

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 1 week

Payment Terms: L/C,T/T

Supply Ability: 1000/month

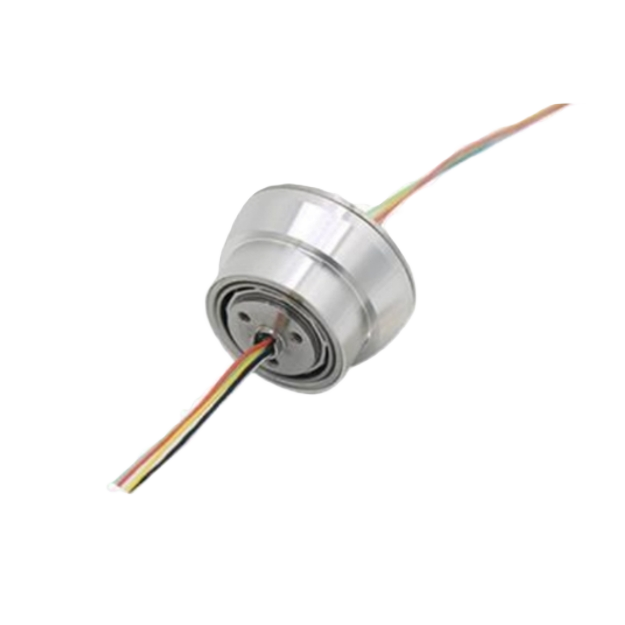

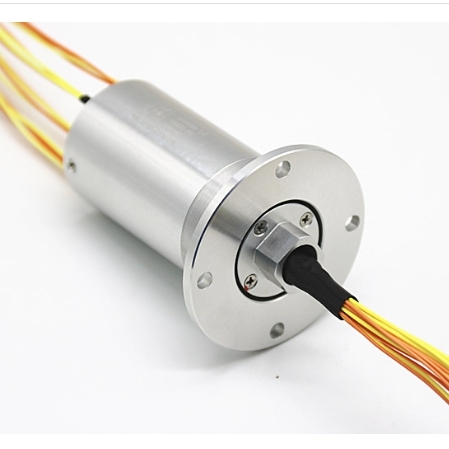

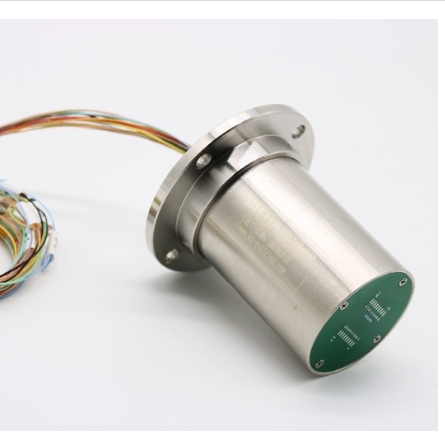

Gallery

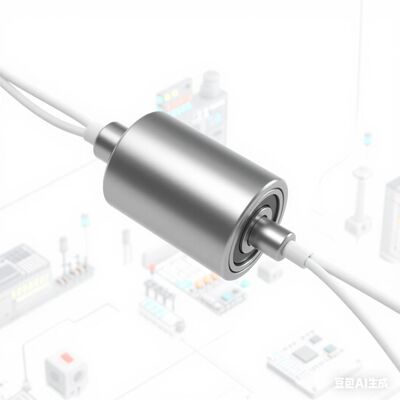

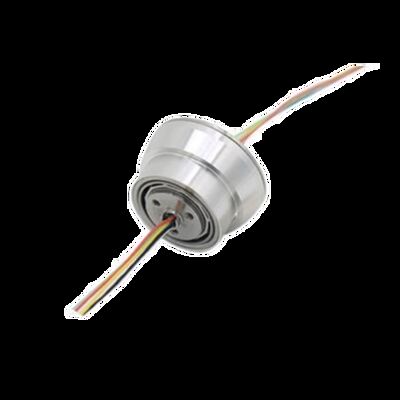

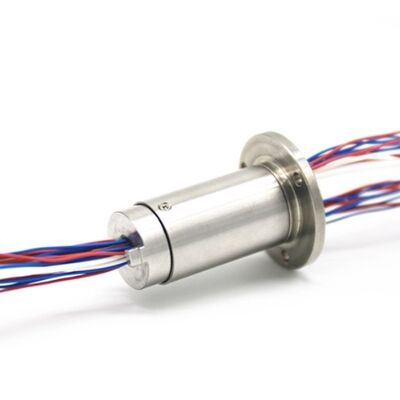

Custom Through Bore Conductive Slip Ring High Reliability Micro Conductive Rotary Joint

Product Description

Custom Through Bore Conductive Slip Ring High Reliability Micro Conductive Rotary Joint

High-Speed 18 Circuit Slip Ring for Stable Power and Signal Transmission

The SP035018-A terminal high-speed slip ring is a newly developed compact slip ring designed for reliable power and signal transmission in high-speed rotating systems. With a rated speed of up to 5000 RPM and a service life of 10 million revolutions, this model is ideal for continuous rotation applications requiring stable electrical performance and easy installation.

Unlike traditional slip rings with external lead wires, SP035018-A adopts a lead-wire-free terminal design. Color-coded interfaces are located on both the rotor and stator, significantly simplifying wiring, reducing installation errors, and improving overall system reliability.

Key Features and Advantages

High-Speed Performance: Supports continuous rotation up to 5000 RPM
18 Circuits: Suitable for multi-channel power and signal transmission
Terminal-Type Design: No flying leads, clean wiring, fast installation
Gold-Gold Contact Technology: Low electrical noise, low wear, long service life
Stainless Steel Housing: High mechanical strength and corrosion resistance
Low Starting Torque: Smooth startup with maximum torque of 0.5 N*cm
Compact & Lightweight: Weight ≤105 g, ideal for space-limited equipment
Optional Speed Measurement: Available for monitoring and feedback systems

Technical Specifications

Electrical Specifications

Design Loop	18
Insulation Resistance	250MΩ/250V/DC
Current	1A
Dielectric Strength	≥300VAC/50Hz/60s
Dynamic Resistance Change Value	≤10mΩ

Mechanical Specifications

Rated Speed	5000 rpm
Working Life	10 million circle
Operating Temperature	-40℃ ~ 80℃
Operating Humidity	0～80%RH
Contact Material	Gold-gold
Shell Material	Stainless steel
Maximum Starting Torque	0.5N.cm
Weight	≤105g
IP Grade	IP51

Outline Drawing

Technical Advantages

Slip ring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life
Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
Precision component manufacturing process: dimensional tolerance < 0.01mm, axial displacement < 0.01mm, high precision, and more stable performance
Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
Small in size and compact in structure, it can meet the space constraints of users
Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments
Color code recognition interface: easy to install
