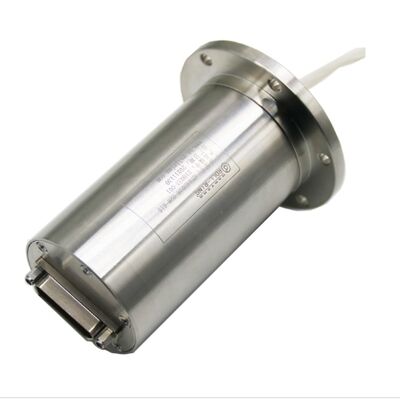

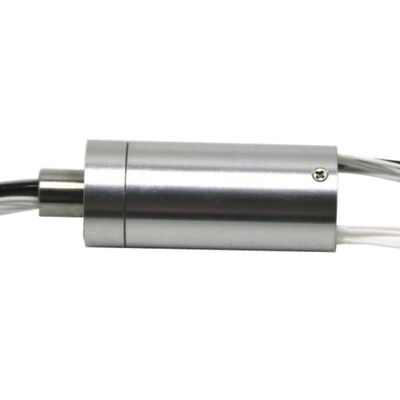

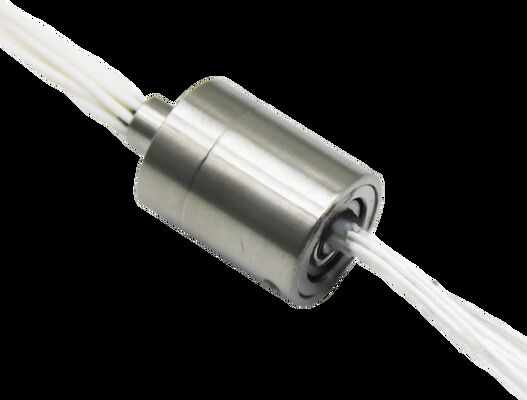

Long Working Life 10 million RPM Slip Ring for UAV Gimbal and Camera Systems

Long Working Life 10 Million RPM Slip Ring for UAV Gimbal and Camera Systems

SP035018-A Terminal Type High-Speed Slip Ring with Easy Installation

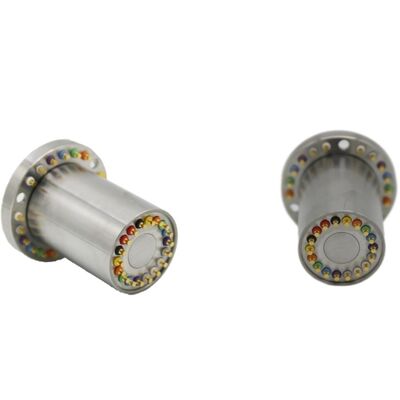

This terminal-type high-speed slip ring eliminates flying leads and features color-coded interfaces on both rotor and stator. Installation is faster, cleaner, and less error-prone compared to traditional slip rings.

Technical Specifications

Electrical Specifications

Mechanical Specifications

Outline Drawing

Technical Advantages

• Core friction pair technology with gold-gold contact for ultra-long service life
• Integrated casting process ensures concentricity between ring groove and bearing ≤ 0.01mm
• Mirror processing technology provides contact surface smoothness of Ra0.02 for reliable contact
• Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
• Advanced brush wire modulation technology with near-zero pressure design extends slip ring life by 1/3
• Compact size and structure to meet space constraints
• Stainless steel construction for durability and strong sealing in harsh environments
• Color-coded recognition interface for easy installation
