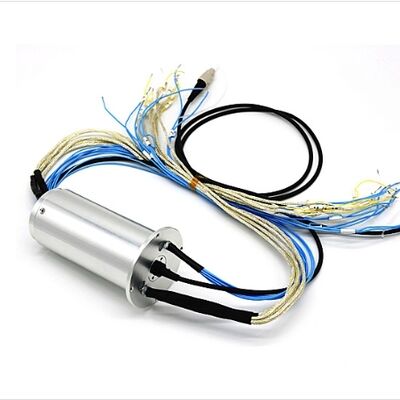

SP036020 20 Circuit High Speed 3000 RPM Long Life Slip Ring for UAV Gimbal

1
MOQ
200-800USD
Price
SP036020 20 Circuit High Speed 3000 RPM Long Life Slip Ring for UAV Gimbal
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0~3000 RPM
Design Loop: 20
Working Life: 10 Million~100 Million Circle
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -40℃ To 60℃
Insulation Resistance: 200MΩ/250V/DC
Maximum Current: 1A
Shell Material: Alluminum Alloy/304 Stainless Steel/316L Stainless Steel
Highlight:

20 circuit high speed slip ring

,

3000 RPM long life slip ring

,

UAV gimbal conductive slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP036020
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
SP036020 20 Circuit High Speed 3000 RPM Long Life Slip Ring for UAV Gimbal
Designed for aerospace-grade testing environments, the SP036020 high-speed slip ring supports reliable signal transmission under extreme rotational speeds. With a robust aluminum or stainless-steel housing and excellent insulation performance, it is ideal for aircraft engine test benches, rotating instrumentation systems, and aerospace R&D platforms.
Technical Specifications
Electrical Specifications
Design Loop 20
Insulation Resistance 200MΩ/250V/DC
Rated Voltage/Current 250VDC/3A
Dielectric Strength ≥250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 300 ± 20mm (optional)
Mechanical Specifications
Rated Speed 0~3000 rpm
Working Life 10 million~100 million rotations
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Aluminum alloy/304 stainless steel/316L stainless steel
Maximum Starting Torque 3.5N.cm
IP Grade IP51
Outline Drawing
SP036020 20 Circuit High Speed 3000 RPM Long Life Slip Ring for UAV Gimbal 0
Technical Advantages
  • Friction Pair Technology: Gold-gold contact technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 RPM with cooling system
  • Extended Lifespan: Maximum operational life of up to 100 million rotations
