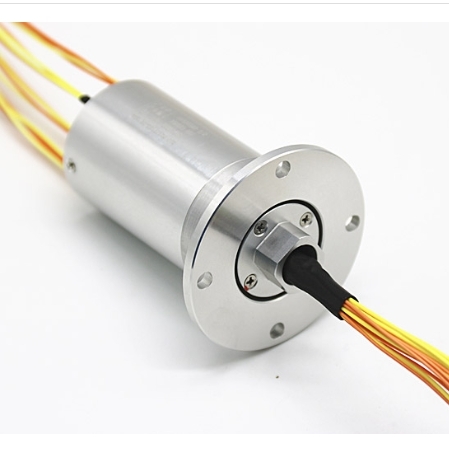

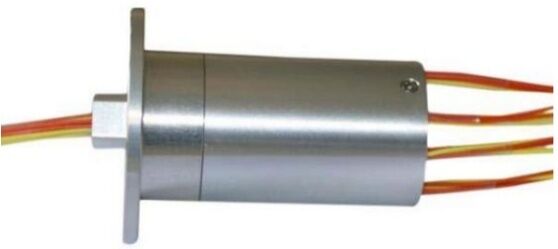

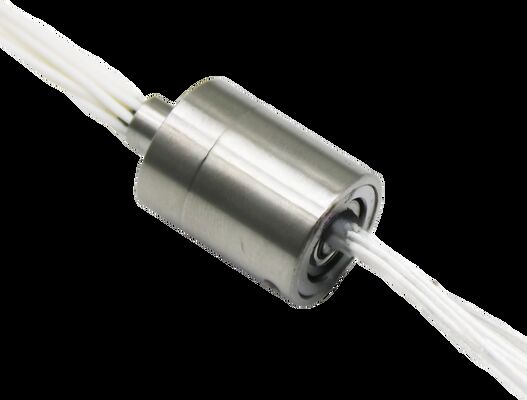

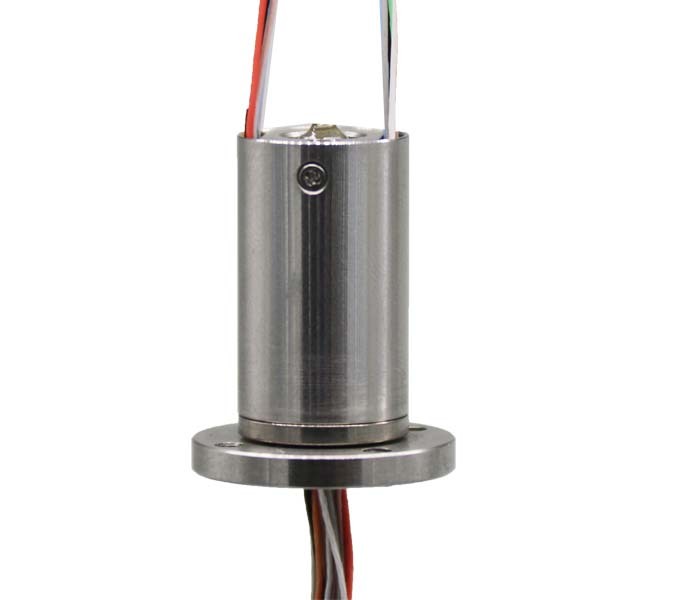

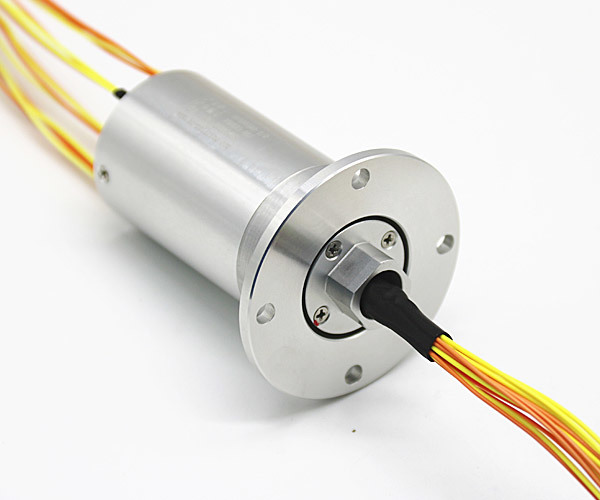

Miniature Brushless Slip Ring 20Channels 3ALow Noise for CCTV PTZ Surveillance Camera

Designed specifically for CCTV PTZ surveillance cameras, the SP036020 represents our core high-speed long-life slip ring technology. This product has been rigorously validated through extensive user testing and delivers consistent, reliable performance throughout its rated lifespan. Trusted across multiple industries including aerospace, rail transit, automotive testing, and industrial R&D applications.

• Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
• Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for enhanced reliability
• Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
• Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
• High-Speed Capability: Maximum speed of 8000 rpm with cooling system
• Extended Lifespan: Maximum operational life of up to 100 million rotations
