360 Degree Rotating 20 Channel 1A Slip Ring IP51 Electrical Connector for Wind Turbines 3000rpm Speed

1
MOQ
200-800USD
Price
360 Degree Rotating 20 Channel 1A Slip Ring IP51 Electrical Connector for Wind Turbines 3000rpm Speed
Features Gallery Product Description Chat Now
Features
Specifications
Working Speed: 0~3000 Rpm
Rated Current: 3A
Insulation Resistance: 200MΩ/250V/DC
Number Of Channels: 20
Rating Voltage: 250VDC
Working Temperature: -45℃ ~ 60℃
Highlight:

360 degree rotating slip ring

,

20 channel 1A slip ring

,

IP51 wind turbine slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP036020
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

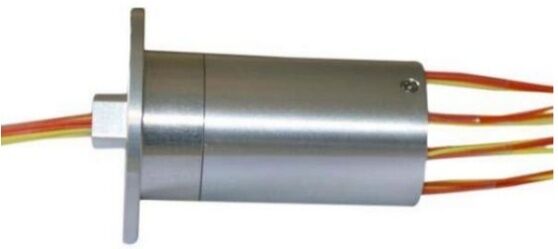

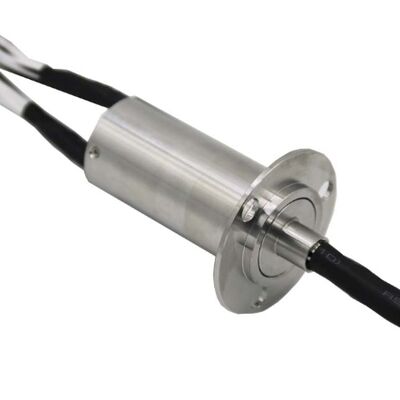

360 Degree Rotating 20 Channel 1A Slip Ring IP51 Electrical Connector
Engineering excellence defines the SP036020 slip ring. This precision unit features axial displacement <0.01mm and dimensional tolerance <0.01mm. The contact surface is mirror-processed to Ra0.02, ensuring stable dynamic resistance (≤10mΩ). Designed for engineers requiring precise signal transmission in high-RPM applications including wind turbines.
Technical Specifications
Electrical Specifications
Design Loop 20
Insulation Resistance 200MΩ/250V/DC
Rated Voltage/Current 250VDC/3A
Dielectric Strength ≥250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 300 ± 20mm (optional)
Mechanical Specifications
Rated Speed 0-3000 rpm
Working Life 10 million - 100 million rotations
Operating Temperature -45℃ to +60℃
Contact Material Gold-gold
Shell Material Aluminum alloy / 304 stainless steel / 316L stainless steel
Maximum Starting Torque 3.5 N.cm
IP Grade IP51
Outline Drawing
360 Degree Rotating 20 Channel 1A Slip Ring IP51 Electrical Connector for Wind Turbines 3000rpm Speed 0
Technical Advantages
  • Core friction pair technology with gold metal contacts ensures ultra-long service life
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation with near-zero pressure design extends slip ring life by 1/3
  • High-speed capability up to 8000 revolutions per minute (with cooling system)
  • Exceptional lifespan up to 100 million rotations
