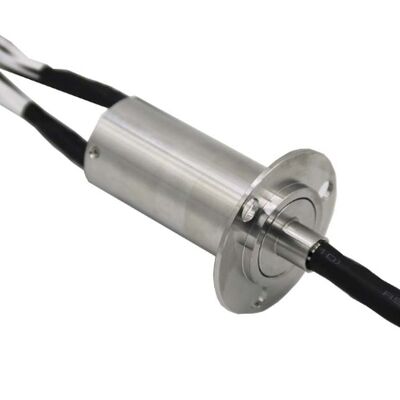

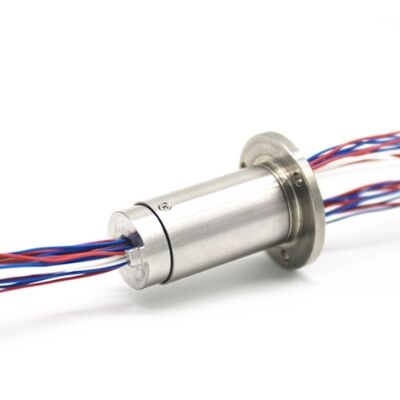

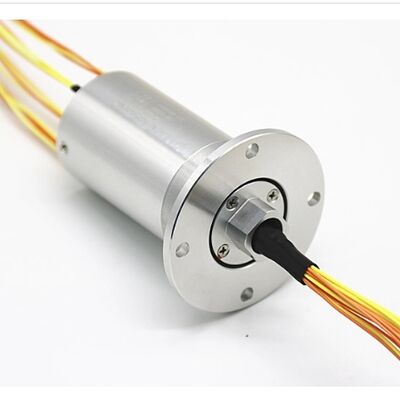

Miniature 3000 RPM Slip Ring 250VDC 3A with 20 Circuits for CT Scanners

Miniature 3000 RPM Slip Ring 250VDC 3A with 20 Circuits for CT Scanners

The SP036020 20-way slip ring is optimized for automotive testing applications. It provides stable power and signal transfer for wheel hub testing, brake system evaluation, and rotating endurance test rigs, even at high rotational speeds. Its long service life minimizes maintenance and downtime in automated testing lines.

Technical Specifications

Electrical Specifications

Mechanical Specifications

Outline Drawing

Technical Advantages

• Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
• Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for reliable contact
• Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
• Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
• High Speed Capability: Maximum speed of 8000 revolutions per minute with cooling system
• Extended Lifespan: Maximum operational life of up to 100 million revolutions
